4-氯-N-邻甲苯基苯甲酰胺
4-Chloro-N-o-tolyl-benzamide.
作者信息
Saeed Aamer, Khera Rasheed Ahmad, Abbas Naeem, Gotoh Kazuma, Ishida Hiroyuki
出版信息
Acta Crystallogr Sect E Struct Rep Online. 2008 Sep 30;64(Pt 10):o2043. doi: 10.1107/S1600536808030912.
Abstract

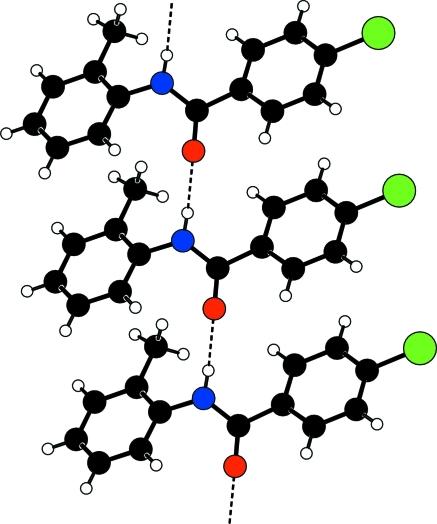

In the mol-ecule of the title compound, C(14)H(12)ClNO, the two benzene rings are close to coplanar [dihedral angle = 7.85 (4)°]. The amide N-C=O plane makes dihedral angles of 34.04 (4) and 39.90 (3)°, respectively, with the 4-chloro- and 2-methyl-phenyl rings. In the crystal structure, inter-molecular N-H⋯O hydrogen bonds link the mol-ecules into chains.
摘要
在标题化合物C(14)H(12)ClNO的分子中，两个苯环接近共面[二面角 = 7.85 (4)°]。酰胺N-C=O平面与4-氯苯环和2-甲基苯环分别形成34.04 (4)°和39.90 (3)°的二面角。在晶体结构中，分子间的N-H⋯O氢键将分子连接成链。
