1,3-二环己基-1-(4-硝基苯甲酰基)脲
1,3-Dicyclo-hexyl-1-(4-nitro-benzo-yl)urea.
作者信息
Dhinaa A N, Jagan R, Sivakumar K, Chinnakali K
机构信息
Department of Physics, Anna University Chennai, Chennai 600 025, India.
出版信息
Acta Crystallogr Sect E Struct Rep Online. 2010 May 8;66(Pt 6):o1291. doi: 10.1107/S1600536810016107.
Abstract

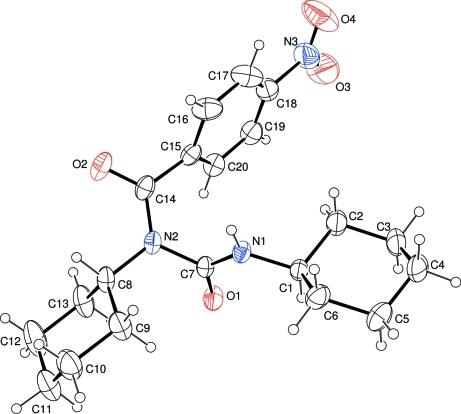

In the title compound, C(20)H(27)N(3)O(4), both cyclo-hexane rings adopt chair conformations. The benzene ring and the amide group are oriented at a dihedral angle of 62.1 (2)°. In the crystal structure, inter-molecular N-H⋯O and C-H⋯O hydrogen bonds link the mol-ecules into chains propagating in [010], which contain R(2) (2)(12) ring motifs.
摘要
在标题化合物C₂₀H₂₇N₃O₄中，两个环己烷环均呈椅式构象。苯环与酰胺基团的二面角为62.1 (2)°。在晶体结构中，分子间的N—H⋯O和C—H⋯O氢键将分子连接成沿[010]方向延伸的链，其中包含R₂²(₁₂)环模式。
