(E)-N'-(2-Benzyl-oxybenzyl-idene)isonicotinohydrazide methanol solvate monohydrate.

作者信息

Naveenkumar H S, Sadikun Amirin, Ibrahim Pazilah, Hemamalini Madhukar, Fun Hoong-Kun

出版信息

Acta Crystallogr Sect E Struct Rep Online. 2010 May 15;66(Pt 6):o1337-8. doi: 10.1107/S1600536810016958.

Abstract

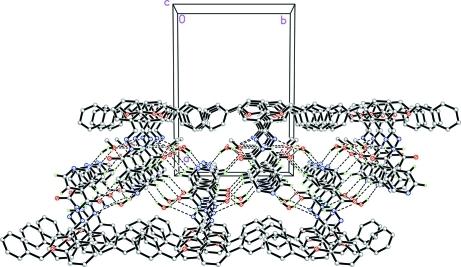

The title compound, C(20)H(17)N(3)O(2)·CH(4)O·H(2)O, was synthesized by the condensation reaction of 2-benzyl-oxybenzaldehyde with isoniazid (isonicotinic acid hydrazide). The tricyclic compound displays a trans configuration with respect to the C=N double bond. The central benzene ring makes dihedral angles of 8.83 (7) and 70.39 (8)° with the pyridine ring and the terminal benzene ring, respectively. The dihedral angle between the pyridine ring and the terminal benzene ring is 73.11 (8)°. In the crystal structure, mol-ecules are connected by inter-molecular N-H⋯O, O-H⋯O, O-H⋯(N,N) and C-H⋯O hydrogen bonds, forming a two-dimensional network perpendicular to the a axis.
