4-(4-Pyridylamino)pyridinium perchlorate.

Suppr

超能文献

作者信息

Farnum Gregory A, Laduca Robert L

机构信息

Lyman Briggs College, Department of Chemistry, Michigan State University, East Lansing, MI 48825, USA.

出版信息

Acta Crystallogr Sect E Struct Rep Online. 2009 Jan 31;65(Pt 2):o423. doi: 10.1107/S1600536809003353.

DOI:10.1107/S1600536809003353

PMID:21582011

原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC2968340/

Abstract

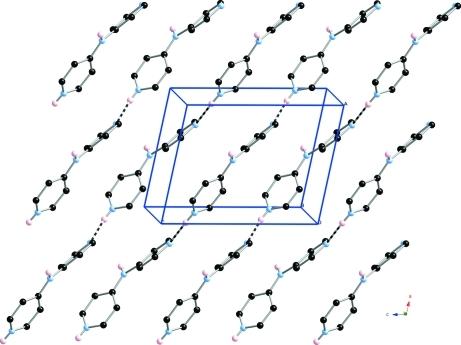

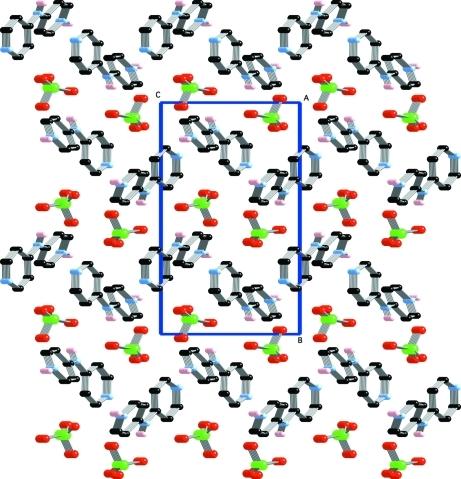

In the title salt, C(10)H(10)N(3) (+)·ClO(4) (-), the 4-(4-pyridylamino)-pyridinium cations are linked into chains via N-H⋯N hydrogen bonding and into layers by C-H⋯π inter-actions [C⋯Cg = 3.3875 (19) Å]. Perchlorate ions are anchored to the layer motifs by N-H⋯O hydrogen bonding. The perchlorate anion was found to be disordered about a Cl-O axis, with two sites, each of equal occupancy, being resolved for the three remaining O atoms.

摘要

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3496/2968340/7779eaf5b4eb/e-65-0o423-fig1.jpg
