(E)-4-羟基-N'-(3,4,5-三甲氧基-亚苄基)苯甲酰肼

(E)-4-Hy-droxy-N'-(3,4,5-trimeth-oxy-benzyl-idene)benzohydrazide.

作者信息

Horkaew Jirapa, Chantrapromma Suchada, Fun Hoong-Kun

出版信息

Acta Crystallogr Sect E Struct Rep Online. 2011 Nov;67(Pt 11):o2985. doi: 10.1107/S1600536811041535. Epub 2011 Oct 22.

Abstract

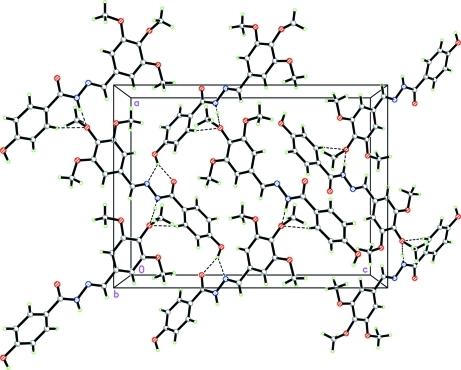

The title benzohydrazide derivative, C(17)H(18)N(2)O(5), exists in a trans conformation with respect to the C=N double bond. The dihedral angle between the benzene rings is 19.41 (5)°. The two meth-oxy groups at the meta positions of the trimeth-oxy-benzene group are almost coplanar with the ring [C-O-C-C = 1.62 (16) and 178.33 (10)°], whereas the third meth-oxy group, at the para position, is (+)-synclinal with the ring. In the crystal, mol-ecules are linked by N-H⋯O and bifurcated O-H⋯(N,O) hydrogen bonds, as well as weak C-H⋯O inter-actions, into sheets lying parallel to the ac plane. A C-H⋯π inter-action also occurs.

摘要

标题苯甲酰肼衍生物C(17)H(18)N(2)O(5),相对于C=N双键以反式构象存在。苯环之间的二面角为19.41 (5)°。三甲氧基苯基团间位的两个甲氧基与环几乎共面[C-O-C-C = 1.62 (16) 和178.33 (10)°],而对位的第三个甲氧基与环呈(+)-顺错构象。在晶体中,分子通过N-H⋯O和分叉的O-H⋯(N,O)氢键以及弱的C-H⋯O相互作用连接成平行于ac平面的片层。还存在C-H⋯π相互作用。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/087f/3247387/6275287b578d/e-67-o2985-fig1.jpg
