消旋-2-(2-氯-6-甲基喹啉-3-基)-2,3-二氢喹啉-4(1H)-酮
rac-2-(2-Chloro-6-methyl-quinolin-3-yl)-2,3-dihydro-quinolin-4(1H)-one.
作者信息
Bouraiou Abdelmalek, Bouacida Sofiane, Bertrand Carboni, Roisnel Thierry, Belfaitah Ali
出版信息
Acta Crystallogr Sect E Struct Rep Online. 2012 Jun 1;68(Pt 6):o1701-2. doi: 10.1107/S1600536812020831. Epub 2012 May 12.
Abstract

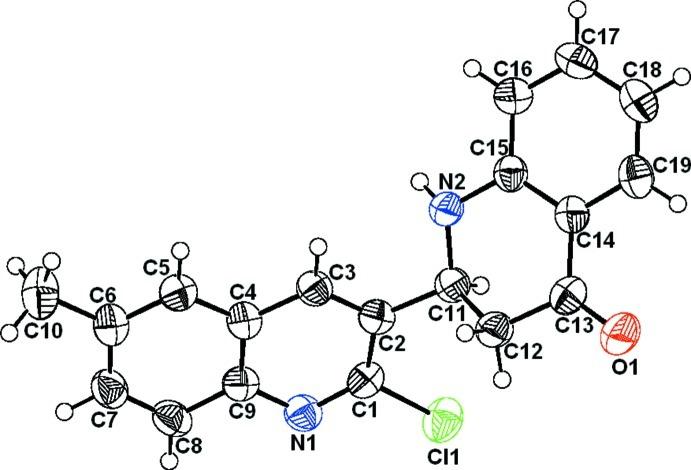

In the title compound, C(19)H(15)ClN(2)O, the quinoline ring forms a dihedral angle of 43.24 (1)° with the benzene ring of the dihydroquinolinyl system. In the crystal, mol-ecules are linked through a single weak C-H⋯O hydrogen bond, forming ribbons which extend along (100), giving alternating zigzag mol-ecular layers which stack down the b-axis direction.
摘要
在标题化合物C₁₉H₁₅ClN₂O中，喹啉环与二氢喹啉基体系的苯环形成43.24（1）°的二面角。在晶体中，分子通过单一的弱C—H⋯O氢键相连，形成沿（100）方向延伸的带状结构，产生交替的锯齿状分子层，这些分子层沿b轴方向堆叠。
