Fast, exact, and non-destructive diagnoses of contact failures in nano-scale semiconductor device using conductive AFM.

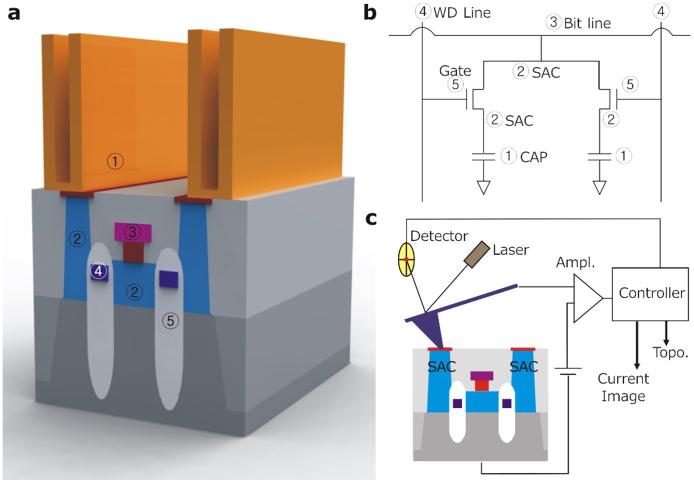

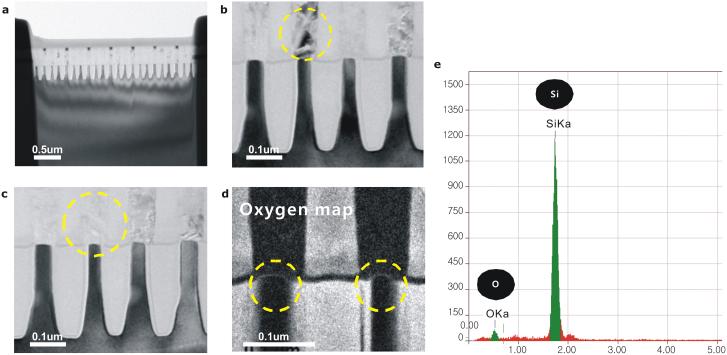

We fabricated a novel in-line conductive atomic force microscopy (C-AFM), which can analyze the resistive failures and examine process variance with an exact-positioning capability across the whole wafer scale in in-line DRAM fabrication process. Using this in-line C-AFM, we introduced a new, non-destructive diagnosis for resistive failure in mobile DRAM structures. Specially, we focused on the self-aligned contact (SAC) process, because the failure of the SAC process is one of the dominant factors that induces the degradation of yield performance, and is a physically invisible defect. We successfully suggested the accurate pass mark for resistive-failure screening in the fabrication of SAC structures and established that the cause of SAC failures is the bottom silicon oxide layer. Through the accurate pass mark for the SAC process configured by the in-line C-AFM analyses, we secured a good potential method for preventing the yield loss caused by failures in DRAM fabrication.
