高性能二硫化钼非晶硅异质结光电探测器。

High performance molybdenum disulfide amorphous silicon heterojunction photodetector.

机构信息

Department of Electrical Engineering and Computer Sciences, University of California, Berkeley, California 94720, United States.

出版信息

Sci Rep. 2013;3:2345. doi: 10.1038/srep02345.

Abstract

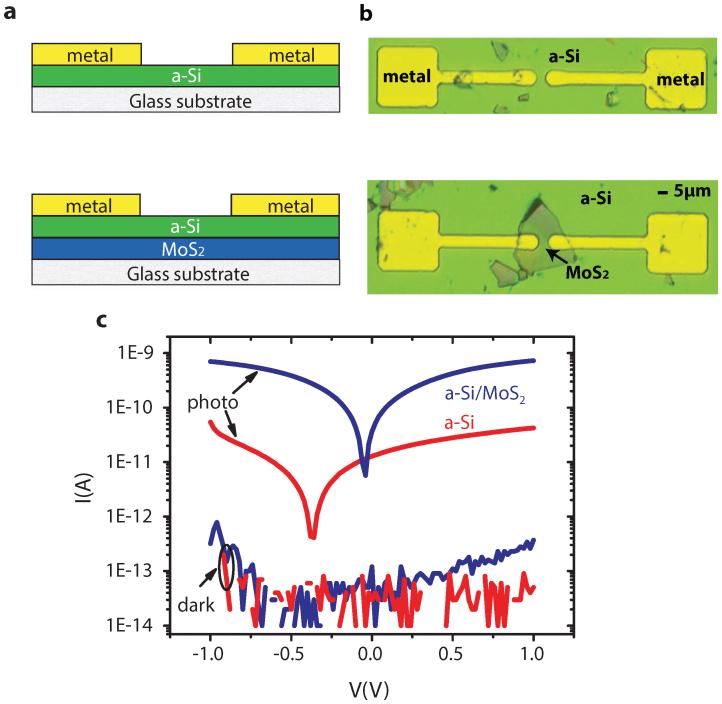

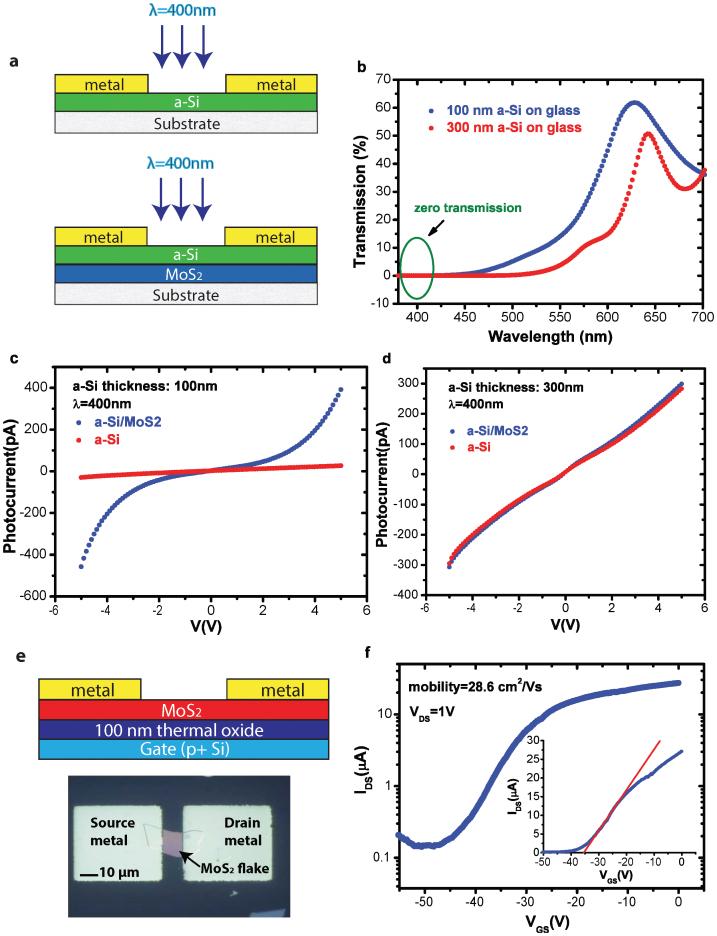

One important use of layered semiconductors such as molybdenum disulfide (MoS2) could be in making novel heterojunction devices leading to functionalities unachievable using conventional semiconductors. Here we demonstrate a metal-semiconductor-metal heterojunction photodetector, made of MoS2 and amorphous silicon (a-Si), with rise and fall times of about 0.3 ms. The transient response does not show persistent (residual) photoconductivity, unlike conventional a-Si devices where it may last 3-5 ms, thus making this heterojunction roughly 10X faster. A photoresponsivity of 210 mA/W is measured at green light, the wavelength used in commercial imaging systems, which is 2-4X larger than that of a-Si and best reported MoS2 devices. The device could find applications in large area electronics, such as biomedical imaging, where a fast response is critical.

摘要

层状半导体(如二硫化钼(MoS2))的一个重要用途可能是制造新型异质结器件,从而实现使用传统半导体无法实现的功能。在这里,我们展示了一种由 MoS2 和非晶硅(a-Si)制成的金属-半导体-金属异质结光电探测器,其上升和下降时间约为 0.3 毫秒。与传统的 a-Si 器件不同,瞬态响应没有持久(残余)光电导,在传统的 a-Si 器件中,它可能持续 3-5 毫秒,因此这种异质结快了大约 10 倍。在绿光(商业成像系统中使用的波长)下,测量到的光响应率为 210 mA/W,比 a-Si 和最佳报道的 MoS2 器件大 2-4 倍。该器件可以在大面积电子学中找到应用,例如生物医学成像,其中快速响应至关重要。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/470a/3731647/022b2c8f81a3/srep02345-f1.jpg
