Effects of Lumbosacral Spinal Cord Epidural Stimulation for Standing after Chronic Complete Paralysis in Humans.

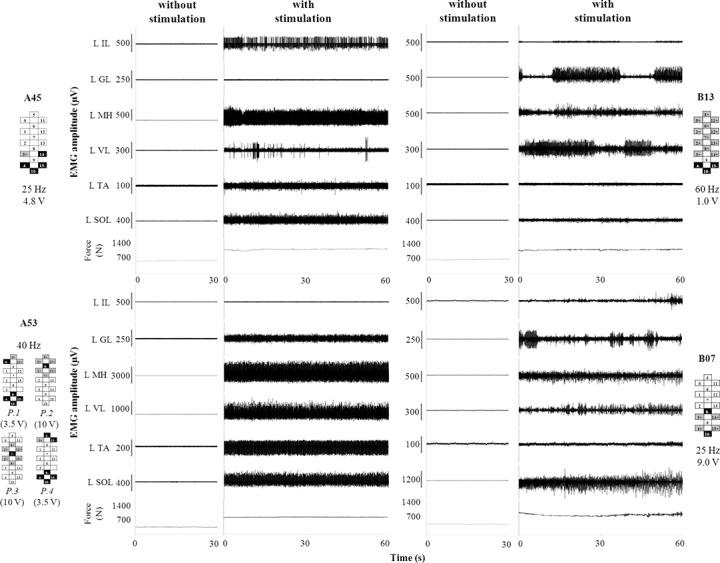

Sensory and motor complete spinal cord injury (SCI) has been considered functionally complete resulting in permanent paralysis with no recovery of voluntary movement, standing or walking. Previous findings demonstrated that lumbosacral spinal cord epidural stimulation can activate the spinal neural networks in one individual with motor complete, but sensory incomplete SCI, who achieved full body weight-bearing standing with independent knee extension, minimal self-assistance for balance and minimal external assistance for facilitating hip extension. In this study, we showed that two clinically sensory and motor complete participants were able to stand over-ground bearing full body-weight without any external assistance, using their hands to assist balance. The two clinically motor complete, but sensory incomplete participants also used minimal external assistance for hip extension. Standing with the least amount of assistance was achieved with individual-specific stimulation parameters, which promoted overall continuous EMG patterns in the lower limbs' muscles. Stimulation parameters optimized for one individual resulted in poor standing and additional need of external assistance for hip and knee extension in the other participants. During sitting, little or negligible EMG activity of lower limb muscles was induced by epidural stimulation, showing that the weight-bearing related sensory information was needed to generate sufficient EMG patterns to effectively support full weight-bearing standing. In general, electrode configurations with cathodes selected in the caudal region of the array at relatively higher frequencies (25-60 Hz) resulted in the more effective EMG patterns for standing. These results show that human spinal circuitry can generate motor patterns effective for standing in the absence of functional supraspinal connections; however the appropriate selection of stimulation parameters is critical.
