Kim Namhun, Kang Sung Kwon
Department of Chemistry, Chungnam National University, Daejeon 305-764, Republic of Korea.
Acta Crystallogr E Crystallogr Commun. 2015 Aug 22;71(Pt 9):m173-4. doi: 10.1107/S2056989015015303. eCollection 2015 Sep 1.

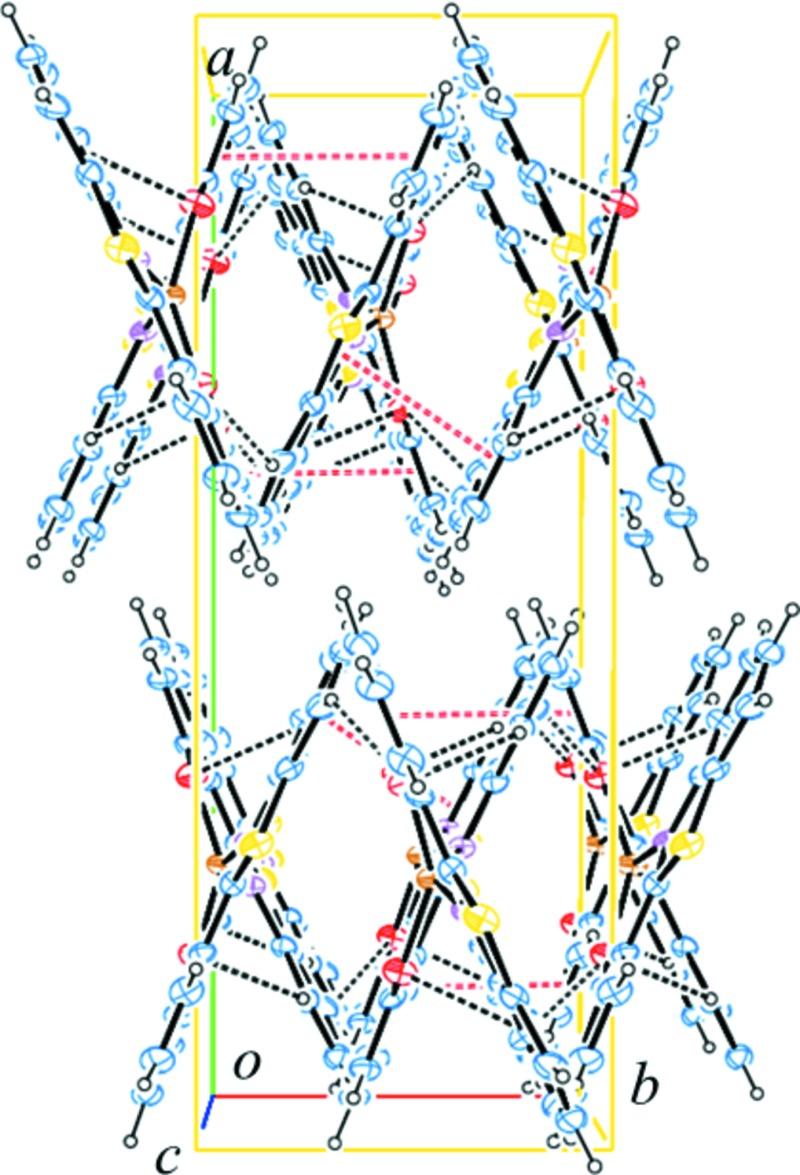

In the title complex, [Cu(C13H8NOS)2], the Cu(II) atom is coordinated by two N atoms and two O atoms from two bidentate benzo-thia-zolphenolate ligands, forming a distorted tetra-hedral geometry [dihedral angle between two N-Cu-O planes: 45.1 (2)°]. The dihedral angles between the benzo-thia-zole ring systems and the phenol rings are 4.1 (4) and 5.8 (4)°, indicating an almost planar geometry. Weak intra- and inter-molecular C-H⋯O hydrogen bonds are observed. In the crystal, weak π-π inter-actions between aromatic and thia-zole rings [centroid-centroid distances = 3.626 (3) and 3.873 (3) Å] link the mol-ecules into a two-dimensional supra-molecular network along the bc plane.
