Kim Beom Seo, Rhim Jun-Won, Kim Beomyoung, Kim Changyoung, Park Seung Ryong
Center for Correlated Electron Systems, Institute for Basic Science, Seoul, 08826, Korea.
Department of Physics and Astronomy, Seoul National University, Seoul, 08826, Korea.
Sci Rep. 2016 Nov 2;6:36389. doi: 10.1038/srep36389.

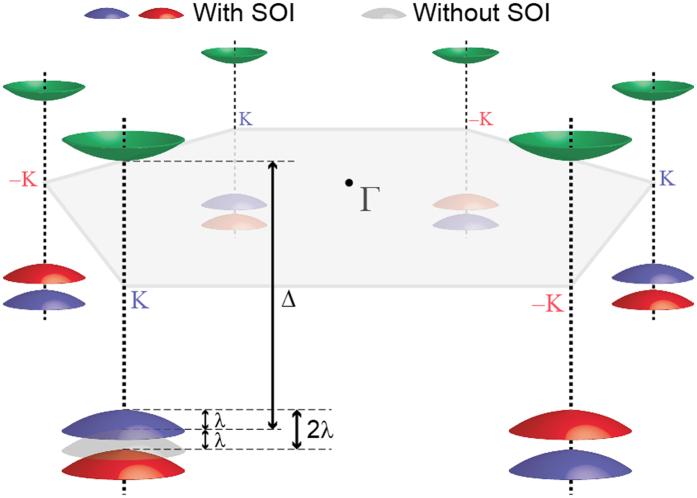

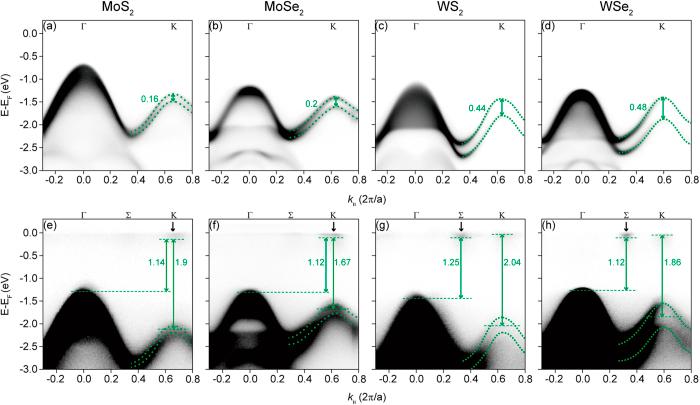

Monolayer MX (M = Mo, W; X = S, Se) has recently been drawn much attention due to their application possibility as well as the novel valley physics. On the other hand, it is also important to understand the electronic structures of bulk MX for material applications since it is very challenging to grow large size uniform and sustainable monolayer MX. We performed angle-resolved photoemission spectroscopy and tight binding calculations to investigate the electronic structures of bulk 2H-MX. We could extract all the important electronic band parameters for bulk 2H-MX, including the band gap, direct band gap size at K (-K) point and spin splitting size. Upon comparing the parameters for bulk 2H-MX (our work) with mono- and multi-layer MX (published), we found that stacked layers, substrates for thin films, and carrier concentration significantly affect the parameters, especially the band gap size. The origin of such effect is discussed in terms of the screening effect.
单层MX(M = Mo、W;X = S、Se)由于其应用潜力以及新颖的能谷物理特性,近来备受关注。另一方面,了解体相MX的电子结构对于材料应用也很重要,因为生长大尺寸、均匀且可持续的单层MX极具挑战性。我们进行了角分辨光电子能谱和紧束缚计算,以研究体相2H-MX的电子结构。我们能够提取体相2H-MX所有重要的电子能带参数,包括带隙、K(-K)点处的直接带隙大小以及自旋分裂大小。通过将体相2H-MX(我们的工作)的参数与单层和多层MX(已发表)的参数进行比较,我们发现堆叠层数、薄膜的衬底以及载流子浓度会显著影响这些参数,尤其是带隙大小。我们从屏蔽效应的角度讨论了这种效应的起源。
