Moon Suk-Hee, Kang Youngjin, Park Ki-Min
Department of Food and Nutrition, Kyungnam College of Information and Technology, Busan 47011, Republic of Korea.
Division of Science Education, Kangwon National University, Chuncheon 24341, Republic of Korea.
Acta Crystallogr E Crystallogr Commun. 2017 Sep 25;73(Pt 10):1542-1545. doi: 10.1107/S2056989017013421. eCollection 2017 Oct 1.

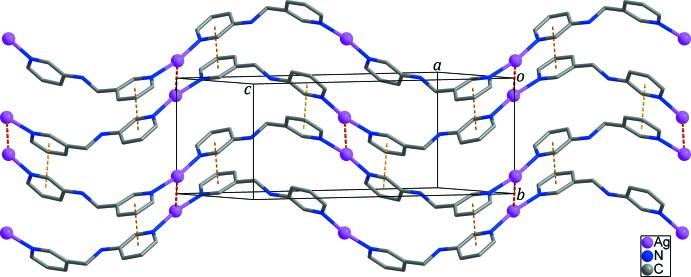

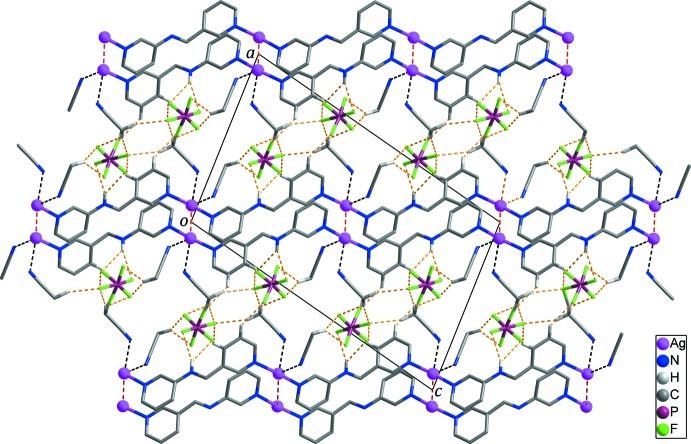

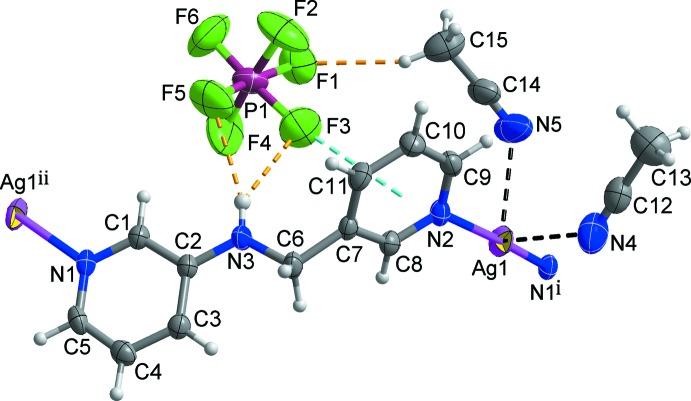

The asymmetric unit in the title compound, [Ag(CHN)]PF·2CHCN or {[Ag]·PF·2CHCN} , = -(pyridin-3-ylmeth-yl)pyridin-3-amine, comprises one Ag atom, one ligand, two aceto-nitrile solvent mol-ecules and one PF anion disordered over two orientations in a 0.567 (11):0.433 (11) ratio. Each Ag atom is coordinated by two pyridine N atoms from two ligands in a slightly distorted linear coordination geometry [N-Ag-N = 170.55 (8)°]. Each ligand bridges two Ag ions, resulting in the formation of a zigzag chain propagating along the [101] direction. In the crystal, Ag⋯Ag contacts [3.3023 (5) Å] and inter-molecular π-π stacking inter-actions [centroid-to-centroid distance = 3.5922 (15) Å] between the pyridine rings link these chains into a corrugated layer parallel to the ([Formula: see text]01) plane. The layers are stacked with a separation of 10.4532 (5) Å, and aceto-nitrile solvent mol-ecules and PF anions as guests are inter-calated between the layers. The layers are connected through several N/C-H⋯F hydrogen bonds and P-F⋯π inter-actions [F⋯ring centroid = 3.241 (8) Å] between the layer and the inter-calated guests and between the inter-calated guests, forming a three-dimensional supra-molecular network.
标题化合物[Ag(CHN)]PF·2CHCN或{[Ag]·PF·2CHCN}(其中=-(吡啶-3-基甲基)吡啶-3-胺)的不对称单元包含一个Ag原子、一个配体、两个乙腈溶剂分子和一个PF阴离子,该阴离子在两个取向之间无序排列,比例为0.567 (11):0.433 (11)。每个Ag原子由来自两个配体的两个吡啶N原子配位,形成略微扭曲的线性配位几何结构[N-Ag-N = 170.55 (8)°]。每个配体桥连两个Ag离子,形成沿[101]方向传播的锯齿链。在晶体中,Ag⋯Ag接触[3.3023 (5) Å]以及吡啶环之间分子间的π-π堆积相互作用[质心到质心距离 = 3.5922 (15) Å]将这些链连接成平行于([公式:见正文]01)平面的波纹层状结构。这些层以10.4532 (5) Å的间距堆叠在一起,乙腈溶剂分子和PF阴离子作为客体插层在这些层之间。这些层通过层与插层客体之间以及插层客体之间的几个N/C-H⋯F氢键和P-F⋯π相互作用[F⋯环质心 = 3.241 (8) Å]相连,形成三维超分子网络。
