Bond Strength of an Orthodontic Adhesive Containing an Antibiofilm Agent (Octafluoropentyl Methacrylate).

OBJECTIVE

The objective of this study was to determine whether an adhesive containing antibiofilm agent octafluoropentyl methacrylate (OFPA) has an acceptable bond strength as an orthodontic adhesive.

METHODS

Sixty human premolars were divided into four groups. In Groups 1 and 2, brackets were bonded to the teeth using experimental nanohybrid adhesive containing OFPA (ENH-OFPA) and Transbond XT (TXT) was used in Groups 3 and 4. In Groups 1 and 3, the samples were stored in water at 37°C for 24 h and in Groups 2 and 4 thermocycled between 5°C and 55°C. The entire samples were debonded utilizing a universal testing machine. Two-way ANOVA test employed to compare the shear bond strength (SBS) between two adhesives. Independent Student's -test was utilized to compare the SBS at 24 h and followed thermocycling in each adhesive group. Adhesive remnant index (ARI) evaluated in different groups using Chi-square test.

RESULTS

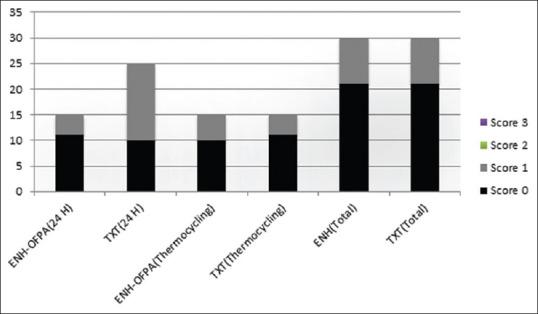

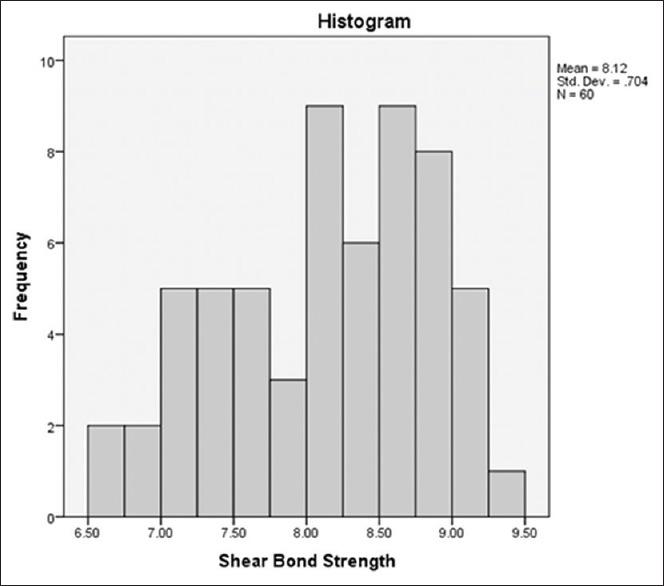

The mean value for SBS in ENH and TXT groups were 8.13 MPa and 8.10 MPa, respectively. The inference of = 0.260 was observed and concluded to be nonsignificant for adhesives in terms of SBS. Statistically, differences that observed in SBS at 24 h and following thermocycling in TXT ( = 0.288) and ENH-OFPA ( = 0.145) groups did not consider to be significant. Comparing ARI scores with bracket failure mode resulted in no significant difference ( = 1) between two adhesives in both 24 h and following thermocycling.

CONCLUSION

Adding OFPA does not compromise SBS of the experimented orthodontic adhesive.
