Department of Applied Chemistry, University of Johannesburg, P.O. Box 17011, Doornfontein 2028, Johannesburg, South Africa.
Centre for Nanomaterials Science Research, University of Johannesburg, Doornfontein 2028, Johannesburg, South Africa.
Sensors (Basel). 2018 Oct 9;18(10):3368. doi: 10.3390/s18103368.

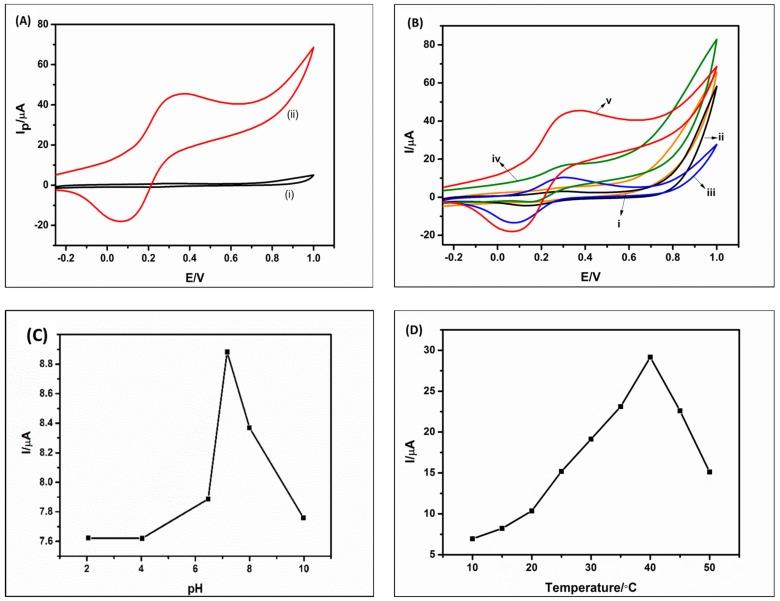

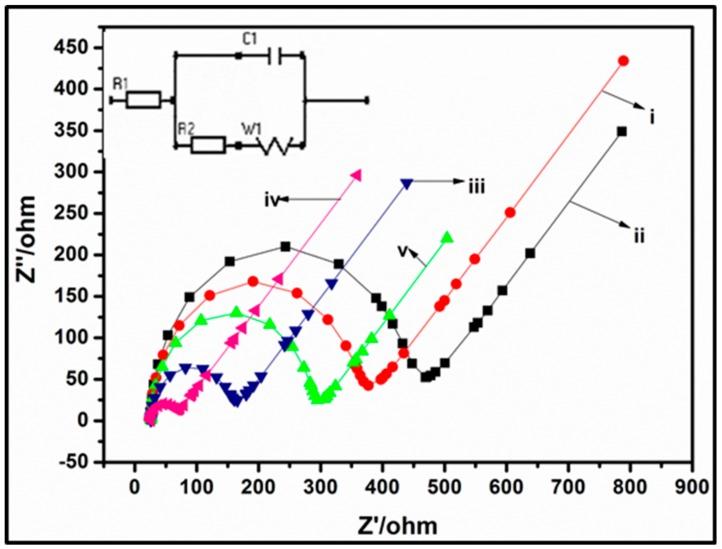

We report the preparation of poly (propylene imine) dendrimer (PPI) and CdTe/CdSe/ZnSe quantum dots (QDs) as a suitable platform for the development of an enzyme-based electrochemical cholesterol biosensor with enhanced analytical performance. The mercaptopropionic acid (MPA)-capped CdTe/CdSe/ZnSe QDs was synthesized in an aqueous phase and characterized using photoluminescence (PL) spectroscopy, ultraviolet-visible (UV-Vis) spectroscopy, transmission electron microscopy (TEM), X-ray power diffraction (XRD), energy dispersive X-ray (EDX) spectroscopy. The absorption and emission maxima of the QDs red shifted as the reaction time and shell growth increased, indicating the formation of CdTe/CdSe/ZnSe QDs. PPI was electrodeposited on a glassy carbon electrode followed by the deposition (by deep coating) attachment of the QDs onto the PPI dendrimer modified electrode using 1-Ethyl-3-(3-dimethylaminopropyl)-carbodiimide hydrochloride (EDC), and N-hydroxysuccinimide (NHS) as a coupling agent. The biosensor was prepared by incubating the PPI/QDs modified electrode into a solution of cholesterol oxidase (ChOx) for 6 h. The modified electrodes were characterized by voltammetry and impedance spectroscopy. Since efficient electron transfer process between the enzyme cholesterol oxidase (ChOx) and the PPI/QDs-modified electrode was achieved, the cholesterol biosensor (GCE/PPI/QDs/ChOx) was able to detect cholesterol in the range 0.1⁻10 mM with a detection limit (LOD) of 0.075 mM and sensitivity of 111.16 μA mM cm. The biosensor was stable for over a month and had greater selectivity towards the cholesterol molecule.

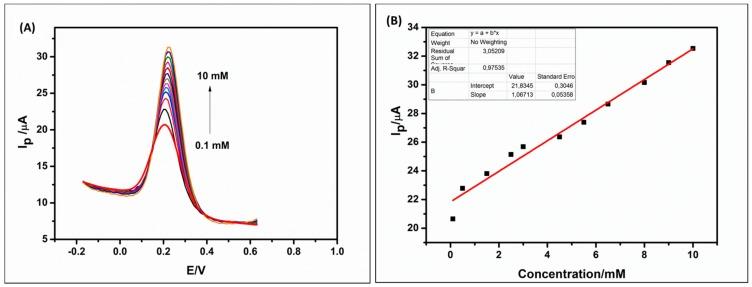

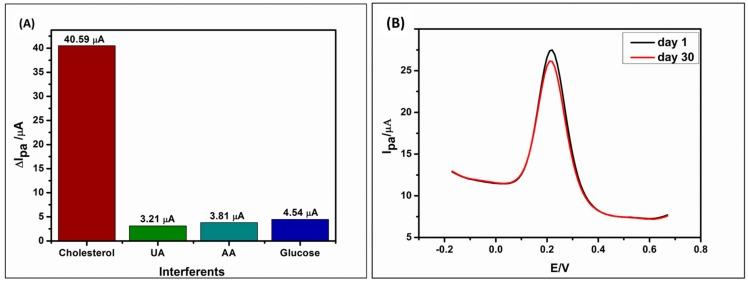

我们报告了聚(丙烯亚胺)树状大分子(PPI)和 CdTe/CdSe/ZnSe 量子点(QDs)的制备,作为开发具有增强分析性能的基于酶的电化学胆固醇生物传感器的合适平台。巯基丙酸(MPA)封端的 CdTe/CdSe/ZnSe QDs 在水相中合成,并通过光致发光(PL)光谱、紫外-可见(UV-Vis)光谱、透射电子显微镜(TEM)、X 射线粉末衍射(XRD)、能谱(EDX)光谱进行了表征。随着反应时间和壳层生长的增加,QDs 的吸收和发射最大值发生红移,表明形成了 CdTe/CdSe/ZnSe QDs。PPI 被电沉积在玻碳电极上,然后通过 1-乙基-3-(3-二甲基氨基丙基)碳二亚胺盐酸盐(EDC)和 N-羟基琥珀酰亚胺(NHS)作为偶联剂,将 QDs 通过深涂附着在 PPI 树状大分子修饰电极上。生物传感器通过将 PPI/QDs 修饰电极孵育在胆固醇氧化酶(ChOx)溶液中 6 h 来制备。修饰电极通过伏安法和阻抗谱进行了表征。由于酶胆固醇氧化酶(ChOx)和 PPI/QDs 修饰电极之间实现了有效的电子转移过程,因此胆固醇生物传感器(GCE/PPI/QDs/ChOx)能够在 0.1⁻10 mM 的范围内检测胆固醇,检测限(LOD)为 0.075 mM,灵敏度为 111.16 μA mM cm。该生物传感器在一个月以上的时间内保持稳定,对胆固醇分子具有更高的选择性。
