A Unique Strategy for Polyethylene Glycol/Hybrid Carbon Foam Phase Change Materials: Morphologies, Thermal Properties, and Energy Storage Behavior.

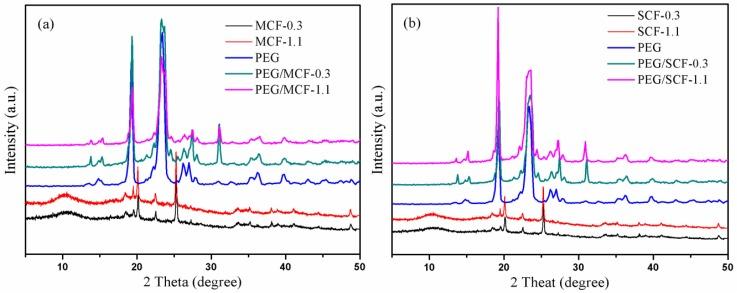

Polyethylene glycol (PEG)/hybrid carbon foam (CF) phase change materials (PCMs) were prepared by integrating PEG into CF via dynamic-vacuum impregnation. The hybrid CF was first synthesized by mixtures of graphene oxide (GO) and carbon nanotubes (CNTs) with different volume ratios. The morphologies, chemical structures, thermal conductivities, shape-stabilization levels, and photo-thermal energy conversion levels of these composite PCMs were characterized systematically. The prepared composite PCMs exhibited good shape-stabilization levels and showed their original shapes without any PEG leakage. It was found that the polyethylene glycol/carbon foam with multi-walled carbon nanotubes (PEG/MCF) composite PCMs had a better shape-stable performance below the temperature of 250 °C, and the thermal conductivity of the PEG/MCF composite PCMs reached as high as 1.535 W/(mK), which was obviously higher than that of polyethylene glycol/carbon foam with single-walled carbon nanotubes (PEG/SCF, 1.159 W/(mK)). The results of the photo-thermal simulation tests showed that the composite PCMs had the ability to absorb light energy and then convert it to thermal energy, and the maximum thermal energy storage efficiency of the PEG/MCF composite PCMs and the PEG/SCF composite PCMs was 92.1% and 90.6%, respectively. It was considered that a valuable technique to produce high-performance composite PCMs was developed.
