Łabuz Grzegorz, Yildirim Timur M, Auffarth Gerd U, Son Hyeck-Soo, Khoramnia Ramin
David J Apple Center for Vision Research, Department of Ophthalmology, University of Heidelberg, Im Neuenheimer Feld 400, 69120, Heidelberg, Germany.
Eye Vis (Lond). 2021 Apr 22;8(1):14. doi: 10.1186/s40662-021-00235-5.
Intraocular lens (IOL) calcification is a serious condition that can only be treated by removing the clouded lens. Since explantation bears the risk of complications, it is often deferred until the patient finds the symptoms intolerable. Usually, as the IOL opacifies, visual acuity is minimally affected early on. In this study, we assessed the impact of IOL opacification on optical quality.
We analyzed ten opacified explanted IOLs (Oculentis GmbH). Wavefront aberrations were obtained with a SHSOphthalmic device (Optocraft GmbH), which features a Hartmann-Shack sensor. The root mean square (RMS) of higher-order aberrations (HOAs) was compared. The effect of calcification on image quality was assessed through the Strehl ratio (SR). We detected light scattering with a C-Quant (Oculus GmbH) and expressed it as a straylight parameter.

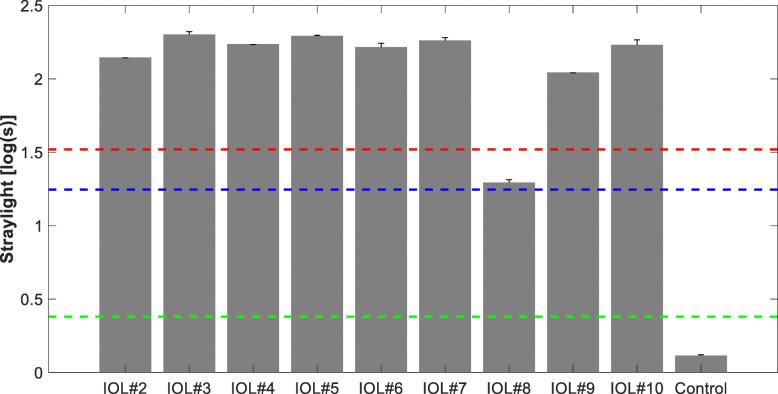

At 2 mm, 3 mm and 4 mm, the mean RMS (±standard deviation) was 0.033 μm (±0.026 μm), 0.044 μm (±0.027), and 0.087 μm (±0.049), respectively. The mean SR value was 0.81 ± 0.15 at 3 mm, with four IOLs showing a nearly diffraction-limited performance, but in two explants, opacification precluded reliable measurements. Increased straylight was found in all opacified IOLs with a mean value of 150.2 ± 56.3 deg/sr at 3 mm.
We demonstrated that IOL opacification induces HOAs. However, the RMS remained low, which resulted only in a slight reduction of the SR-derived optical quality. On the other hand, we found a severe straylight elevation in the opacified lenses, which may result in dysphotopsia, such as glare, and subjective complaints, despite good visual acuity.
人工晶状体(IOL)钙化是一种严重的病症,只能通过摘除混浊的晶状体来治疗。由于摘除手术存在并发症风险,通常会推迟到患者觉得症状无法忍受时才进行。通常,随着人工晶状体变得混浊,早期视力仅受到轻微影响。在本研究中,我们评估了人工晶状体混浊对光学质量的影响。
我们分析了10个混浊的已摘除人工晶状体(Oculentis GmbH公司)。使用配备哈特曼-夏克传感器的SHS眼科设备(Optocraft GmbH公司)获取波前像差。比较了高阶像差(HOA)的均方根(RMS)。通过斯特列尔比(SR)评估钙化对图像质量的影响。我们使用C-Quant(Oculus GmbH公司)检测光散射,并将其表示为杂散光参数。
在2毫米、3毫米和4毫米处,平均RMS(±标准差)分别为0.033微米(±0.026微米)、0.044微米(±0.027)和0.087微米(±0.049)。在3毫米处,平均SR值为0.81±0.15,有4个人工晶状体表现出接近衍射极限的性能,但在2个已摘除的晶状体中,混浊使得无法进行可靠测量。在所有混浊的人工晶状体中均发现杂散光增加,在3毫米处平均值为150.2±56.3度/球面度。
我们证明了人工晶状体混浊会诱发高阶像差。然而,RMS仍然较低,这仅导致基于SR的光学质量略有下降。另一方面,我们发现混浊晶状体中的杂散光严重升高,这可能导致诸如眩光等不良视觉现象以及主观不适,尽管视力良好。
