Ahlawat Paramvir, Hinderhofer Alexander, Alharbi Essa A, Lu Haizhou, Ummadisingu Amita, Niu Haiyang, Invernizzi Michele, Zakeeruddin Shaik Mohammed, Dar M Ibrahim, Schreiber Frank, Hagfeldt Anders, Grätzel Michael, Rothlisberger Ursula, Parrinello Michele
Laboratory of Computational Chemistry and Biochemistry, Institute of Chemical Sciences and Engineering, École Polytechnique Fédérale de Lausanne (EPFL), CH-1015 Lausanne, Switzerland.
Institut für Angewandte Physik, Universität Tübingen, 72076 Tübingen, Germany.
Sci Adv. 2021 Apr 23;7(17). doi: 10.1126/sciadv.abe3326. Print 2021 Apr.

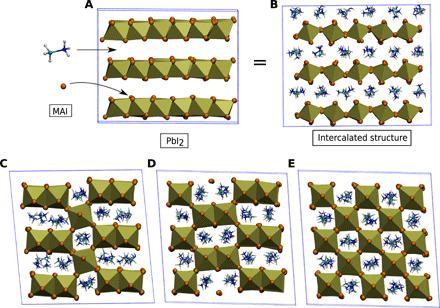

It is well established that the lack of understanding the crystallization process in a two-step sequential deposition has a direct impact on efficiency, stability, and reproducibility of perovskite solar cells. Here, we try to understand the solid-solid phase transition occurring during the two-step sequential deposition of methylammonium lead iodide and formamidinium lead iodide. Using metadynamics, x-ray diffraction, and Raman spectroscopy, we reveal the microscopic details of this process. We find that the formation of perovskite proceeds through intermediate structures and report polymorphs found for methylammonium lead iodide and formamidinium lead iodide. From simulations, we discover a possible crystallization pathway for the highly efficient metastable α phase of formamidinium lead iodide. Guided by these simulations, we perform experiments that result in the low-temperature crystallization of phase-pure α-formamidinium lead iodide.
众所周知,在两步顺序沉积过程中对结晶过程缺乏了解会直接影响钙钛矿太阳能电池的效率、稳定性和可重复性。在此,我们试图了解碘化甲脒铅和碘化甲铵铅两步顺序沉积过程中发生的固-固相变。通过元动力学、X射线衍射和拉曼光谱,我们揭示了这一过程的微观细节。我们发现钙钛矿的形成通过中间结构进行,并报告了碘化甲铵铅和碘化甲脒铅的多晶型物。通过模拟,我们发现了碘化甲脒铅高效亚稳α相的一种可能结晶途径。在这些模拟的指导下,我们进行了实验,实现了纯相α-碘化甲脒铅的低温结晶。
