Automatic Pest Counting from Pheromone Trap Images Using Deep Learning Object Detectors for Monitoring.

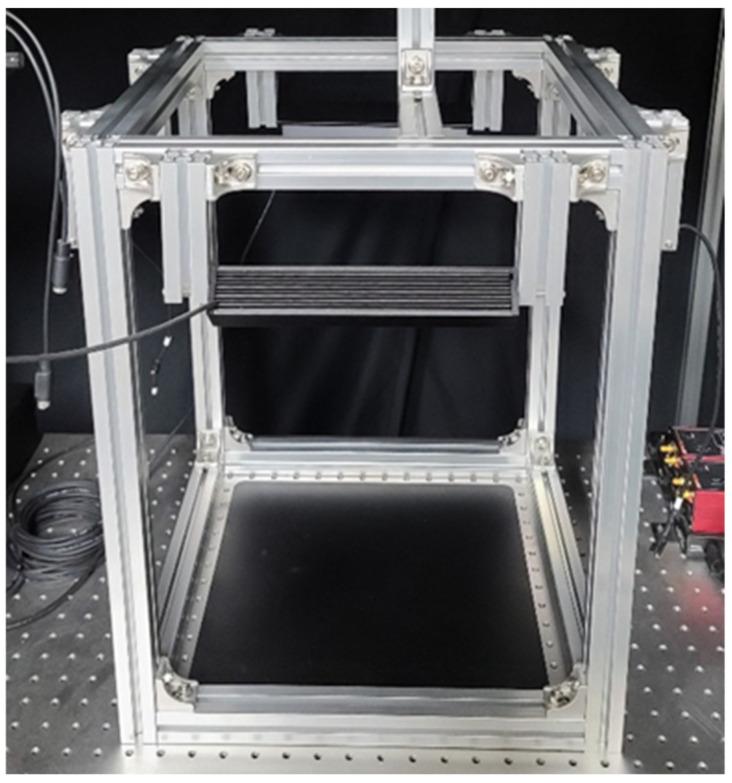

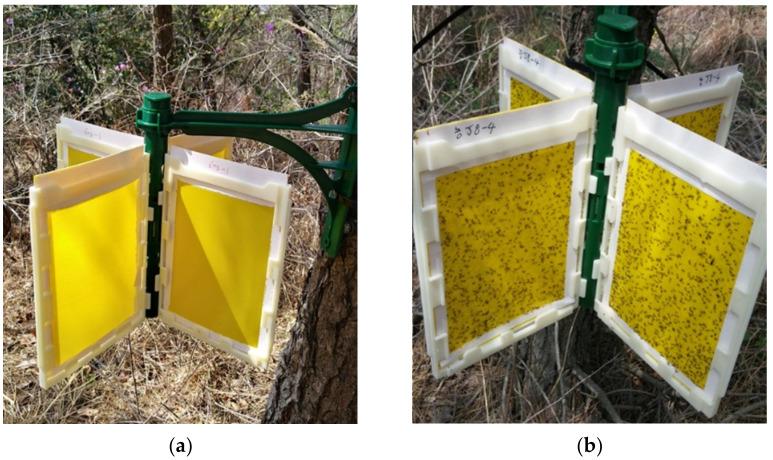

The black pine bast scale, , is a major insect pest of black pine and causes serious environmental and economic losses in forests. Therefore, it is essential to monitor the occurrence and population of , and a monitoring method using a pheromone trap is commonly employed. Because the counting of insects performed by humans in these pheromone traps is labor intensive and time consuming, this study proposes automated deep learning counting algorithms using pheromone trap images. The pheromone traps collected in the field were photographed in the laboratory, and the images were used for training, validation, and testing of the detection models. In addition, the image cropping method was applied for the successful detection of small objects in the image, considering the small size of in trap images. The detection and counting performance were evaluated and compared for a total of 16 models under eight model conditions and two cropping conditions, and a counting accuracy of 95% or more was shown in most models. This result shows that the artificial intelligence-based pest counting method proposed in this study is suitable for constant and accurate monitoring of insect pests.
