Flores-Gatica Miguel, Castañeda-Aponte Héctor, Gil-Garzon Mónica Rebeca, Mora-Galvez Liliana Monserrath, Banda-Magaña Martin Paul, Jáuregui-Jáuregui Jesús Antonio, Torres-Acosta Mario A, Mayolo-Deloisa Karla, Licona-Cassani Cuauhtemoc
Tecnologico de Monterrey, Escuela de Ingeniería y Ciencias, Centro de Biotecnología-FEMSA, Av. Eugenio Garza Sada 2501 Sur, 64849, Monterrey, NL, Mexico.
Tecnologico de Monterrey, Núcleo de Innovación de Sistemas Biológicos, Centro de Biotecnología-FEMSA, Av. Eugenio Garza Sada 2501 Sur, 64849, Monterrey, NL, Mexico.
AMB Express. 2021 Aug 30;11(1):123. doi: 10.1186/s13568-021-01287-5.

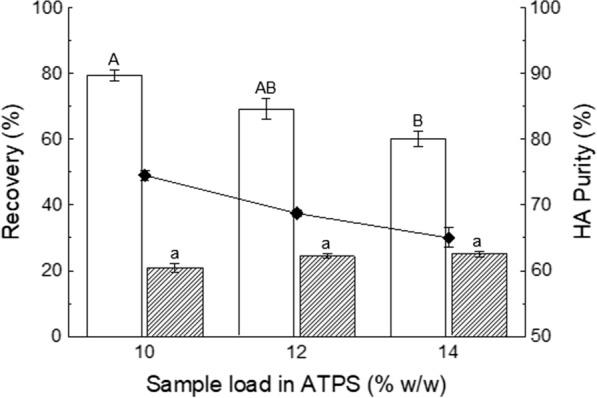

Given its biocompatibility, rheological, and physiological properties, hyaluronic acid (HA) has become a biomaterial of increasing interest with multiple applications in medicine and cosmetics. In recent decades, microbial fermentations have become an important source for the industrial production of HA. However, due to its final applications, microbial HA must undergo critical and long purification processes to ensure clinical and cosmetic grade purity. Aqueous two-phase systems (ATPS) have proven to be an efficient technique for the primary recovery of high-value biomolecules. Nevertheless, their implementation in HA downstream processing has been practically unexplored. In this work, polyethylene glycol (PEG)-citrate ATPS were used for the first time for the primary recovery of HA produced with an engineered strain of Streptococcus equi subsp. zooepidemicus. The effects of PEG molecular weight (MW), tie-line length (TLL), volume ratio (V), and sample load on HA recovery and purity were studied with a clarified fermentation broth as feed material. HA was recovered in the salt-rich bottom phase, and its recovery increased when a PEG MW of 8000 g mol was used. Lower V values (0.38) favoured HA recovery, whereas purity was enhanced by a high V (3.50). Meanwhile, sample load had a negative impact on both recovery and purity. The ATPS with the best performance was PEG 8000 g mol, TLL 43% (w/w), and V 3.50, showing 79.4% HA recovery and 74.5% purity. This study demonstrated for the first time the potential of PEG-citrate ATPS as an effective primary recovery strategy for the downstream process of microbial HA.
鉴于透明质酸(HA)具有生物相容性、流变学和生理学特性,它已成为一种越来越受关注的生物材料,在医学和化妆品领域有多种应用。近几十年来,微生物发酵已成为工业生产HA的重要来源。然而,由于其最终应用,微生物HA必须经过严格且漫长的纯化过程,以确保达到临床和化妆品级别的纯度。双水相系统(ATPS)已被证明是一种用于初步回收高价值生物分子的有效技术。尽管如此,其在HA下游加工中的应用实际上尚未得到探索。在这项工作中,首次使用聚乙二醇(PEG)-柠檬酸盐双水相系统对用马链球菌兽疫亚种工程菌株生产的HA进行初步回收。以澄清的发酵液为原料,研究了PEG分子量(MW)、系线长度(TLL)、体积比(V)和样品负载量对HA回收率和纯度的影响。HA在富含盐的下层相中回收,当使用8000 g/mol的PEG分子量时,其回收率增加。较低的V值(0.38)有利于HA回收,而较高的V值(3.50)可提高纯度。同时,样品负载量对回收率和纯度均有负面影响。性能最佳的双水相系统是PEG 8000 g/mol、TLL 43%(w/w)和V 3.50,其HA回收率为79.4%,纯度为74.5%。本研究首次证明了PEG-柠檬酸盐双水相系统作为微生物HA下游加工有效初步回收策略的潜力。
