Xu Xiaosa, Xu Fei, Zhang Xiuhai, Qu Changzhen, Zhang Jinbo, Qiu Yuqian, Zhuang Rong, Wang Hongqiang
State Key Laboratory of Solidification Processing, Centre for Nano Energy Materials, School of Materials Science and Engineering, Northwestern Polytechnical University, Shaanxi Joint Laboratory of Graphene (NPU), Xi'an, 710072, People's Republic of China.
Nanomicro Lett. 2022 Apr 1;14(1):91. doi: 10.1007/s40820-022-00829-1.

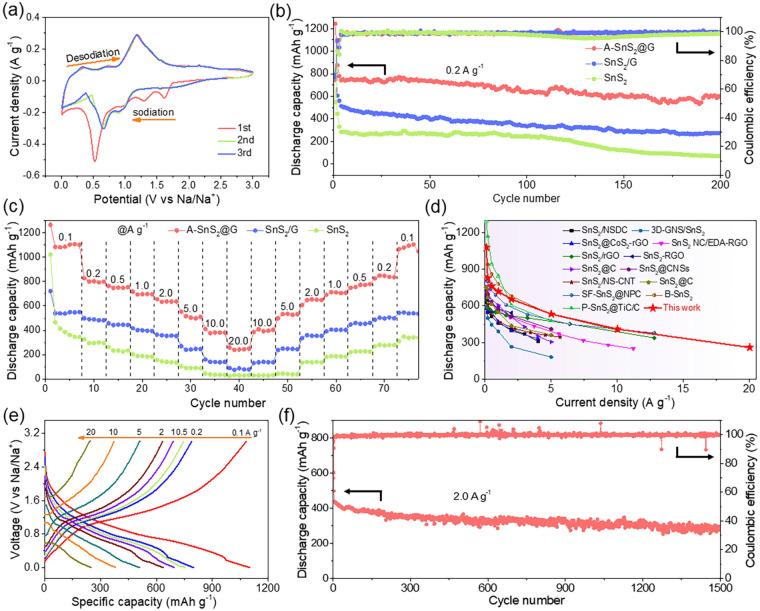

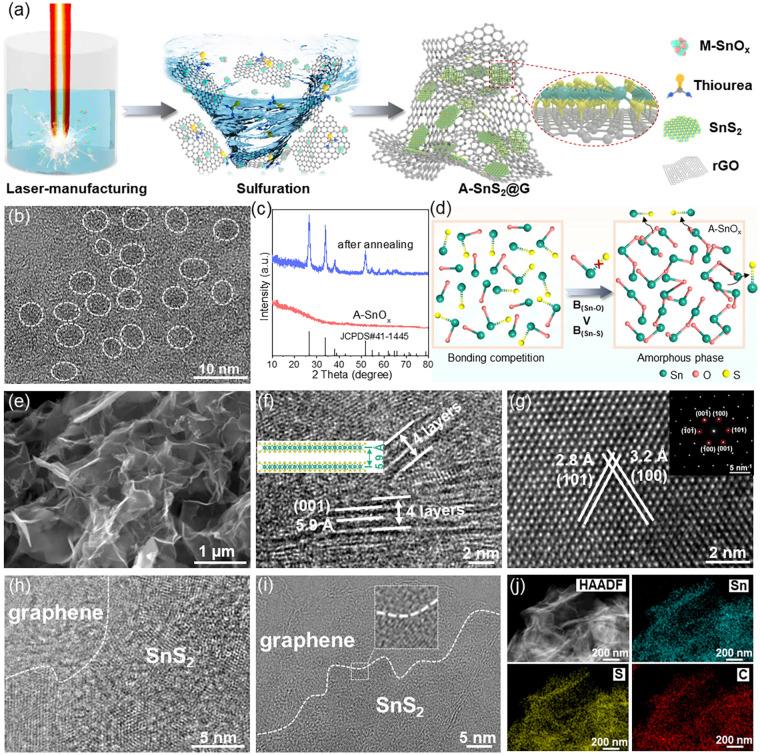

Establishing covalent heterointerfaces with face-to-face contact is promising for advanced energy storage, while challenge remains on how to inhibit the anisotropic growth of nucleated crystals on the matrix. Herein, face-to-face covalent bridging in-between the 2D-nanosheets/graphene heterostructure is constructed by intentionally prebonding of laser-manufactured amorphous and metastable nanoparticles on graphene, where the amorphous nanoparticles were designed via the competitive oxidation of Sn-O and Sn-S bonds, and metastable feature was employed to facilitate the formation of the C-S-Sn covalent bonding in-between the heterostructure. The face-to-face bridging of ultrathin SnS nanosheets on graphene enables the heterostructure huge covalent coupling area and high loading and thus renders unimpeded electron/ion transfer pathways and indestructible electrode structure, and impressive reversible capacity and rate capability for sodium-ion batteries, which rank among the top in records of the SnS-based anodes. Present work thus provides an alternative of constructing heterostructures with planar interfaces for electrochemical energy storage and even beyond.
建立具有面对面接触的共价异质界面对于先进的能量存储具有重要意义,然而如何抑制成核晶体在基体上的各向异性生长仍然是一个挑战。在此,通过在石墨烯上有意预键合激光制造的非晶态和亚稳态纳米颗粒,构建了二维纳米片/石墨烯异质结构之间的面对面共价桥接,其中非晶态纳米颗粒通过Sn-O键和Sn-S键的竞争氧化设计而成,利用亚稳态促进异质结构之间形成C-S-Sn共价键。超薄SnS纳米片在石墨烯上的面对面桥接使异质结构具有巨大的共价耦合面积和高负载量,从而提供畅通无阻的电子/离子传输路径和坚不可摧的电极结构,以及令人印象深刻的钠离子电池可逆容量和倍率性能,在基于SnS的阳极记录中名列前茅。因此,目前的工作为构建具有平面界面的异质结构用于电化学能量存储乃至其他领域提供了一种选择。
