Investigating Iron Alloy Phase Changes Using High Temperature In Situ SEM Techniques.

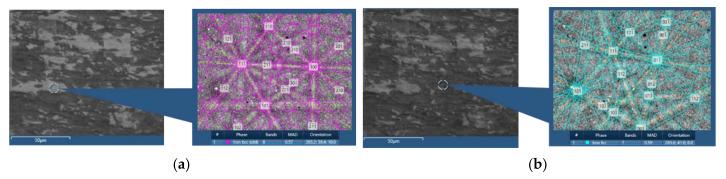

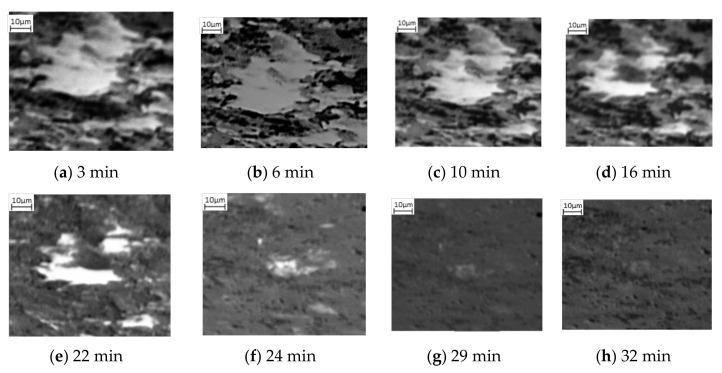

This research utilises a novel heat stage combined with a Zeiss scanning electron microscope to investigate phase changes in iron alloys at temperatures up to 800 ℃ using SE and EBSD imaging. Carbon steel samples with starting structures of ferrite/pearlite were transformed into austenite using the commercial heat treatment process whilst imaging within the SEM. This process facilitates capturing both grain and phase transformation in real time allowing better insight into the microstructural evolution and overall phase change kinetics of this heat treatment. The technique for imaging uses a combination of localised EBSD high temperature imaging combined with the development of high temperature thermal-etching SE imaging technique. The SE thermal etching technique, as verified by EBSD images, enables tracking of a statistically significant number of grains (>100) and identification of individual phases. As well as being applied to carbon steel as shown here, the technique is part of a larger study on high temperature in situ SEM techniques and could be applied to a variety of alloys to study complex phase transformations.
