用于高效低带隙钙钛矿太阳能电池和光电探测器的背界面钝化

Back Interface Passivation for Efficient Low-Bandgap Perovskite Solar Cells and Photodetectors.

作者信息

Lu Jiayu, Wang Huayang, Fan Tingbing, Ma Dong, Wang Changlei, Wu Shaolong, Li Xiaofeng

机构信息

Collaborative Innovation Center of Suzhou Nano Science and Technology, Key Lab of Advanced Optical Manufacturing Technologies of Jiangsu Province & Key Lab of Modern Optical Technologies of Education Ministry of China, School of Optoelectronic Science and Engineering, Soochow University, Suzhou 215006, China.

School of Rail Transportation, Soochow University, Suzhou 215137, China.

出版信息

Nanomaterials (Basel). 2022 Jun 15;12(12):2065. doi: 10.3390/nano12122065.

Abstract

Low-bandgap (E~1.25 eV) mixed tin-lead (Sn-Pb) perovskites are promising candidates for efficient solar cells and self-powered photodetectors; however, they suffer from huge amounts of defects due to the unintentional p-type self-doping. In this work, the synergistic effects of maltol and phenyl-C61-butyric acid methyl ester (PCBM) were achieved to improve the performance of low-bandgap perovskite solar cells (PSCs) and unbiased perovskite photodetectors (PPDs) by passivating the defects and tuning charge transfer dynamics. Maltol eliminated the Sn-related traps in perovskite films through a strong metal chelating effect, whereas PCBM elevated the built-in electric potential and thus improved voltage through the spike energy alignment. Combining both advantages of maltol and PCBM, high-quality perovskite films were obtained, enabling low-bandgap PSCs with the best efficiency of 20.62%. Moreover, the optimized PSCs were further applied as self-powered PPDs in a visible light communication system with a response time of 0.736 μs, presenting a satisfactory audio transmission capability.

摘要

低带隙(E~1.25 eV)的混合锡铅(Sn-Pb)钙钛矿是高效太阳能电池和自供电光电探测器的有前途的候选材料;然而,由于无意的p型自掺杂,它们存在大量缺陷。在这项工作中,通过钝化缺陷和调节电荷转移动力学,实现了麦芽糖醇和苯基-C61-丁酸甲酯(PCBM)的协同效应,以提高低带隙钙钛矿太阳能电池(PSC)和无偏压钙钛矿光电探测器(PPD)的性能。麦芽糖醇通过强大的金属螯合效应消除了钙钛矿薄膜中与锡相关的陷阱,而PCBM提高了内建电势,从而通过尖峰能量对准提高了电压。结合麦芽糖醇和PCBM的优点,获得了高质量的钙钛矿薄膜,使低带隙PSC的最佳效率达到20.62%。此外,优化后的PSC在可见光通信系统中进一步用作自供电PPD,响应时间为0.736 μs,具有令人满意的音频传输能力。

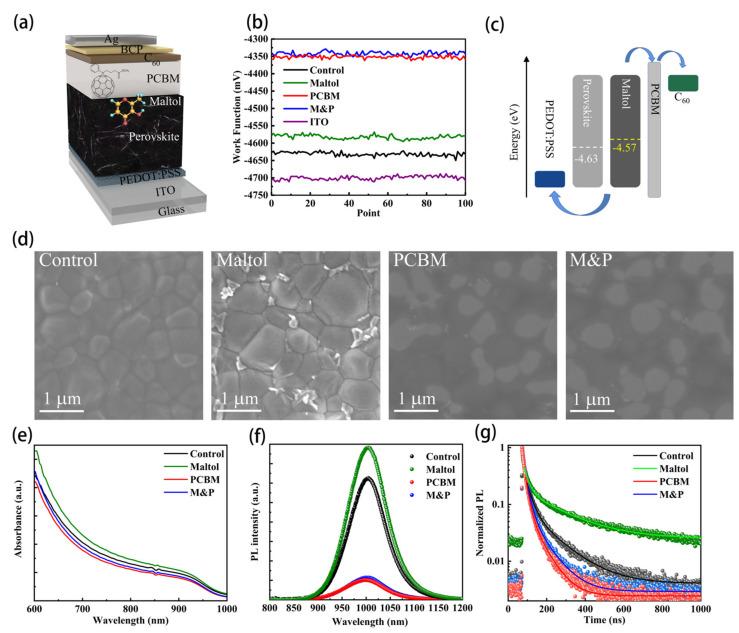

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/50be/9231224/002ee799a09f/nanomaterials-12-02065-g001.jpg
