The Effects of Heat Treatment on Microstructure and Mechanical Properties of Selective Laser Melting 6061 Aluminum Alloy.

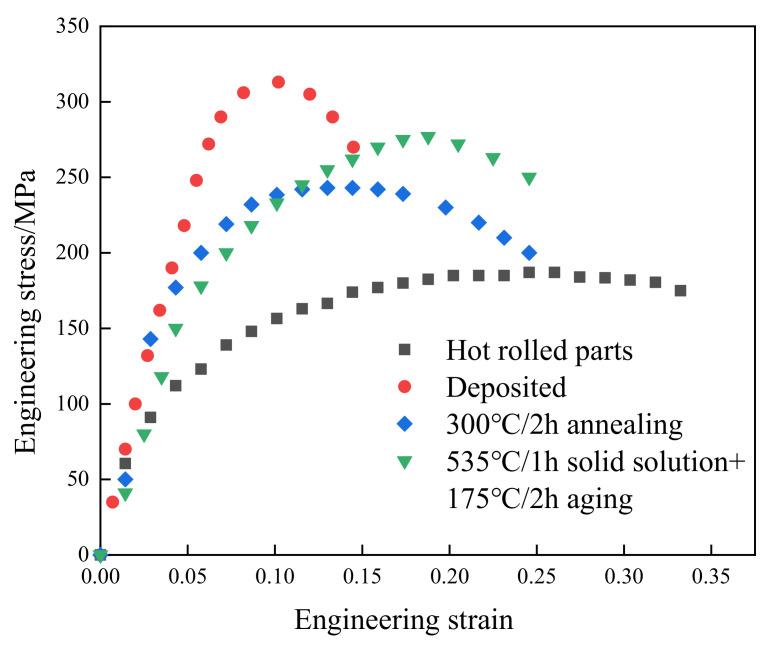

Selective laser melting technology can be used for forming curved panels of 6061 aluminum alloy thermal shield devices for the International Thermonuclear Experimental Reactor (ITER), in order to make the formed parts with better performance. This study proposes different heat treatment processes, including annealed treatment at 300 °C for 2 h, solution treatment at 535 °C and then aging at 175 °C over 2 h, to control the mechanical behavior of the 6061 aluminum alloy samples prepared by selective laser melting (SLM). The mechanical properties such as ductility, tensile strength, and hardness of SLM 6061 aluminum alloy were investigated, and the microstructure of the samples was analyzed. The eutectic silicon skeleton shape disappeared after annealing treatment at 300 °C for 2 h. The tensile strength decreased by 22.86% (from 315 MPa to 243 MPa of the deposited state samples), and the elongation increased from 2.01% to 6.89%. Moreover, the hardness reduced from 120.07 HV to 89.6 HV. After solution aging, the unique microstructure of SLM disappeared. Furthermore, the precipitation of massive Si particles on the α-Al matrix increased, and a trace amount of the MgSi(β) phase was generated. Compared with the deposited samples, the tensile strength decreased by 12.06%, while the hardness of specimens was 118.8 HV. However, the elongation showed a remarkable increase of 297% (from 2.01% to 7.97%). Therefore, solution aging can critically improve the plasticity without losing significant tensile stress in the SLM 6061 aluminum alloy. This study proposes the use of SLM 6061 aluminum alloy for the thermal shields on the ITER and provides a reference for choosing a reasonable heat-treatment method for the optimal performance of the SLM 6061 aluminum alloy.
