Facile and scalable tubing-free sample loading for droplet microfluidics.

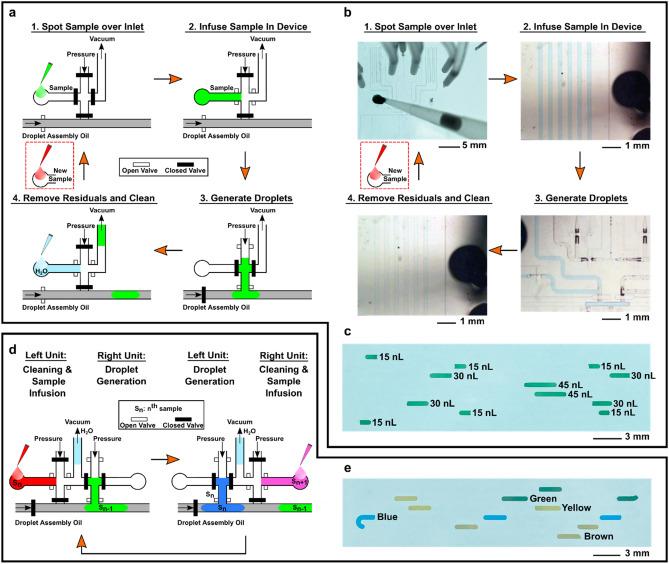

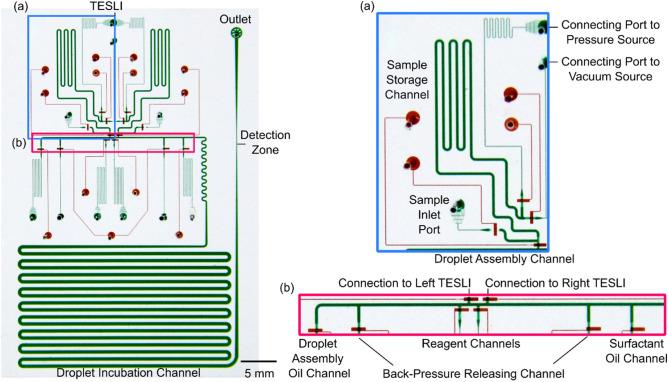

Droplet microfluidics has in recent years found a wide range of analytical and bioanalytical applications. In droplet microfluidics, the samples that are discretized into droplets within the devices are predominantly loaded through tubings, but such tubing-based sample loading has drawbacks such as limited scalability for processing many samples, difficulty for automation, and sample wastage. While advances in autosamplers have alleviated some of these drawbacks, sample loading that can instead obviate tubings offers a potentially promising alternative but has been underexplored. To fill the gap, we introduce herein a droplet device that features a new Tubing Eliminated Sample Loading Interface (TESLI). TESLI integrates a network of programmable pneumatic microvalves that regulate vacuum and pressure sources so that successive sub-microliter samples can be directly spotted onto the open-to-atmosphere TESLI inlet, vacuumed into the device, and pressurized into nanoliter droplets within the device with minimal wastage. The same vacuum and pressure regulation also endows TESLI with cleaning and sample switching capabilities, thus enabling scalable processing of many samples in succession. Moreover, we implement a pair of TESLIs in our device to parallelize and alternate their operation as means to minimizing idle time. For demonstration, we use our device to successively process 44 samples into droplets-a number that can further scale. Our results demonstrate the feasibility of tubing-free sample loading and a promising approach for advancing droplet microfluidics.
