Deep learning-based dental implant recognition using synthetic X-ray images.

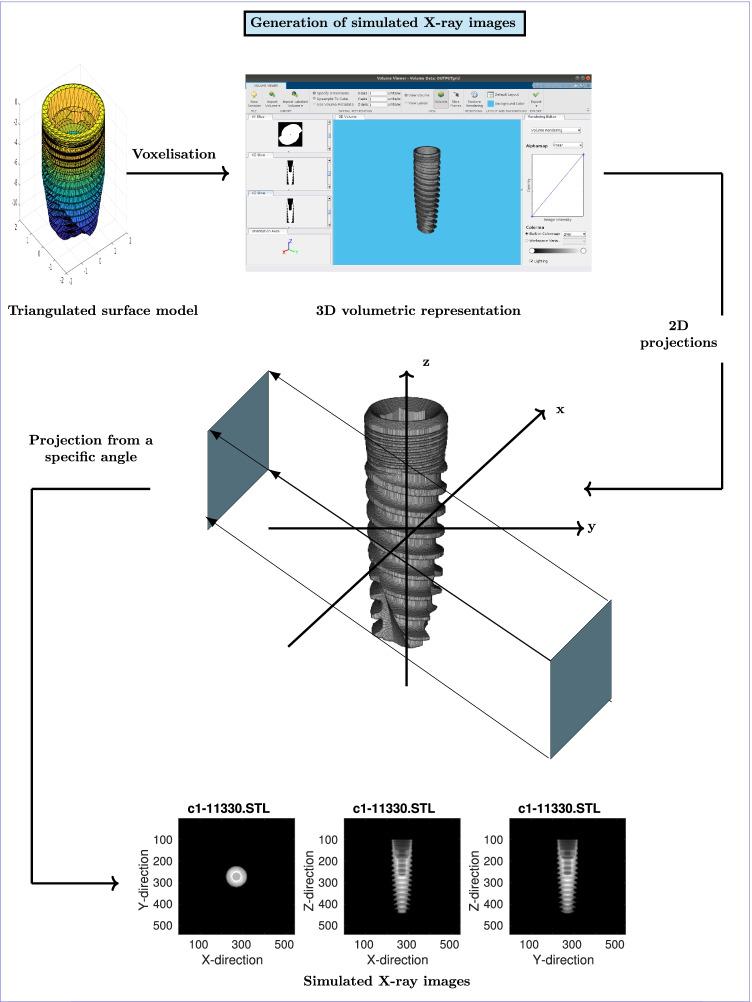

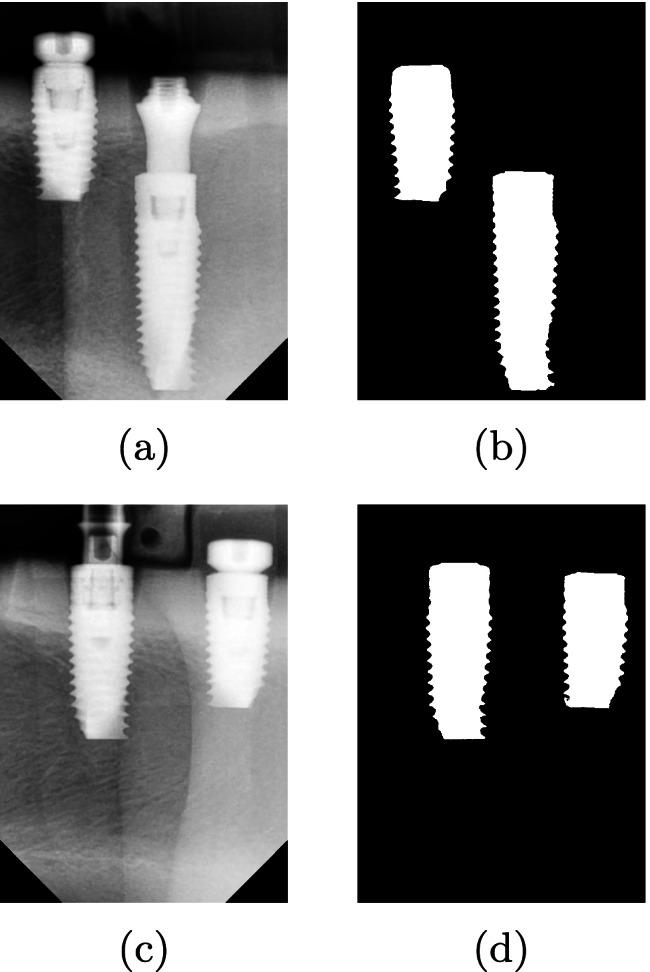

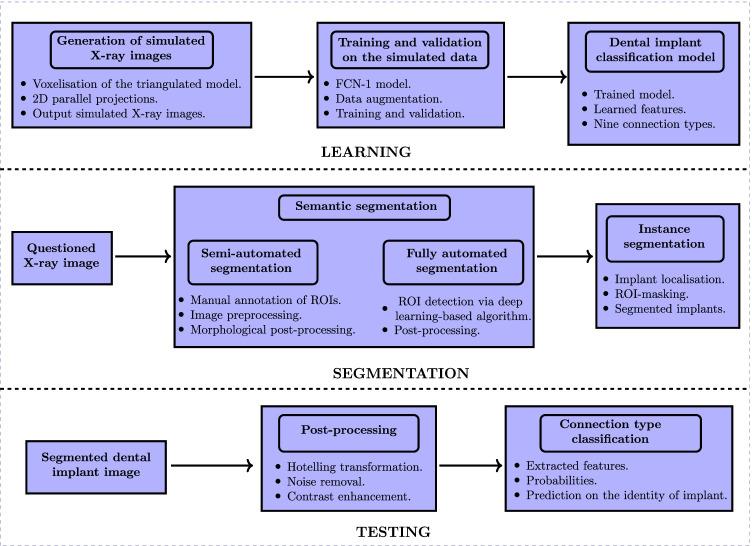

A novel algorithm for generating artificial training samples from triangulated three-dimensional (3D) surface models within the context of dental implant recognition is proposed. The proposed algorithm is based on the calculation of two-dimensional (2D) projections (from a number of different angles) of 3D volumetric representations of computer-aided design (CAD) surface models. A fully convolutional network (FCN) is subsequently trained on the artificially generated X-ray images for the purpose of automatically identifying the connection type associated with a specific dental implant in an actual X-ray image. Semi-automated and fully automated systems are proposed for segmenting questioned dental implants from the background in actual X-ray images. Within the context of the semi-automated system, suitable regions of interest (ROIs), which contain the dental implants, are manually specified. However, as part of the fully automated system, suitable ROIs are automatically detected. It is demonstrated that a segmentation/detection accuracy of 94.0% and a classification/recognition accuracy of 71.7% are attainable within the context of the proposed fully automated system. Since the proposed systems utilise an ensemble of techniques that has not been employed for the purpose of dental implant classification/recognition on any previous occasion, the above-mentioned results are very encouraging.
