Li Jianan, Kang Shuoshuo, Du Haiqiao, Wang Shuwei, Wang Dandan, Liu Mengyu, Yang Shiming
Senior Department of Otolaryngology-Head & Neck Surgery, The Sixth Medical Center of Chinese PLA General Hospital, Beijing 100853, China.
National Clinical Research Center for Otolaryngologic Diseases, Beijing 100853, China.
J Pers Med. 2022 Oct 7;12(10):1666. doi: 10.3390/jpm12101666.

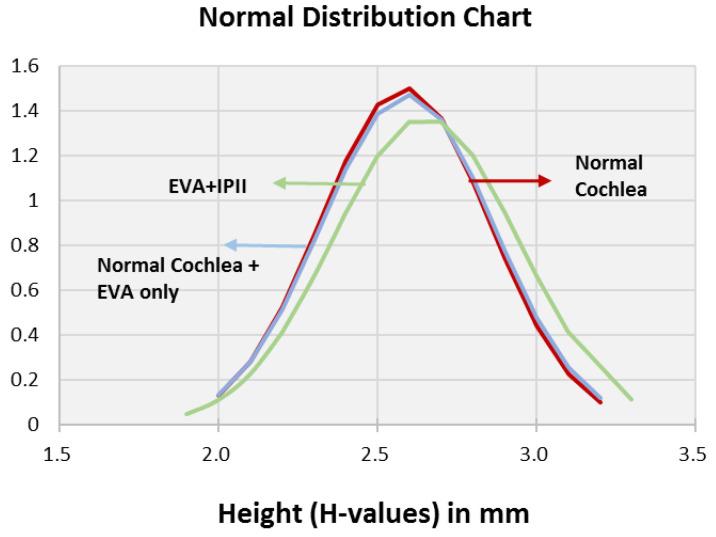

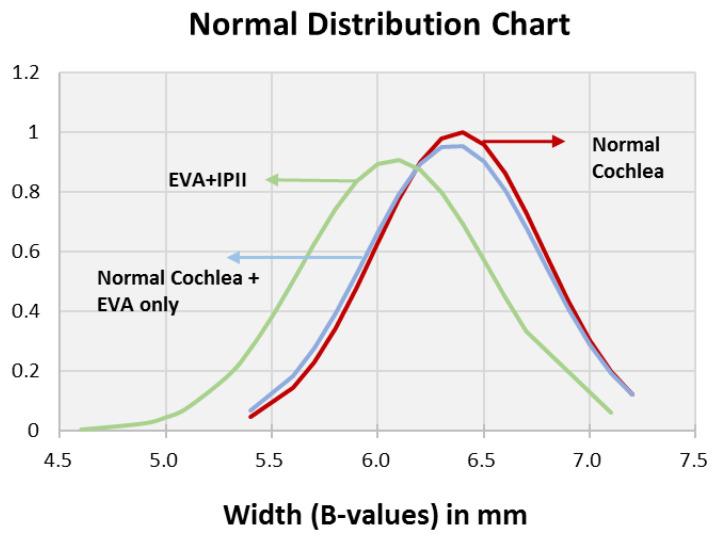

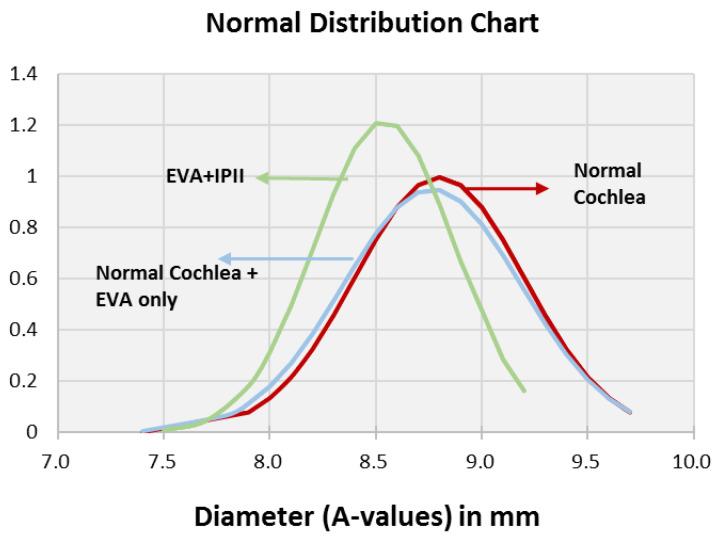

Is cochlear implant (CI) electrode selection for cochleae with an enlarged vestibular aqueduct (EVA) the same as that for patent cochleae with a normal inner ear structure? Preoperative high-resolution computed tomography (HRCT) images of 247 ears were assessed retrospectively. The A-value, B-value, and H-value were measured with OTOPLAN, and Bell curves were created to show the distribution. All ears with EVA were re-evaluated using a 3D slicer to confirm whether incomplete partition type II (IP II) existed. The Mann-Whitney U-test was applied to determine a statistically significant difference. After adjustment with the Bonferroni correction method, a -value ≤ 0.006 was considered significant. In total, 157 ears with patent cochlea and 90 ears with EVA were assessed. Seventy (82%) of the EVA ears had an IP II malformation, and 14 (19%) of these were not detected by CT scan but were later seen through the 3D reconstruction. A significant difference was found for the A value and B value between the patent cochleae and EVA-only and between the patent cochleae and EVA with IP II. Most EVA cases had an IP II malformation. The basal turn of the cochlea may be smaller in EVA cases than in the patent cochleae. Electrode selection should be adjusted accordingly.
对于存在扩大的前庭导水管(EVA)的耳蜗,人工耳蜗(CI)电极的选择与内耳结构正常的通畅耳蜗相同吗?对247只耳的术前高分辨率计算机断层扫描(HRCT)图像进行回顾性评估。使用OTOPLAN测量A值、B值和H值,并绘制钟形曲线以显示分布情况。对所有EVA耳使用3D切片软件重新评估,以确认是否存在不完全分隔II型(IP II)。采用曼-惠特尼U检验确定统计学上的显著差异。经Bonferroni校正法调整后,P值≤0.006被认为具有显著性。总共评估了157只通畅耳蜗耳和90只EVA耳。70只(82%)EVA耳存在IP II畸形,其中14只(19%)在CT扫描中未被检测到,但后来通过三维重建发现。在通畅耳蜗与单纯EVA以及通畅耳蜗与伴有IP II的EVA之间,A值和B值存在显著差异。大多数EVA病例存在IP II畸形。EVA病例的耳蜗底转可能比通畅耳蜗小。电极选择应相应调整。
