掺杂的机制与原理:CdS 薄膜中银掺入的实现及掺杂浓度效应

Mechanism and principle of doping: realizing of silver incorporation in CdS thin film doping concentration effect.

作者信息

Najm A S, Aljuhani Abdulwahab, Naeem Hasanain Salah, Sopian K, Ismail Raid A, Holi Araa Mebdir, Sabri Laith S, Abdullah Al-Zahrani Asla, Rasheed Rashed Taleb, Moria Hazim

机构信息

Department of Electrical, Electronics and System, FKAB, Universiti Kebangsaan Malaysia (UKM) 43600 Bangi Selangor Malaysia

Department of Physics, College of Education, University of Al-Qadisiyah Al-Diwaniyah Al-Qadisiyah 58002 Iraq.

出版信息

RSC Adv. 2022 Oct 17;12(46):29613-29626. doi: 10.1039/d2ra04790j.

Abstract

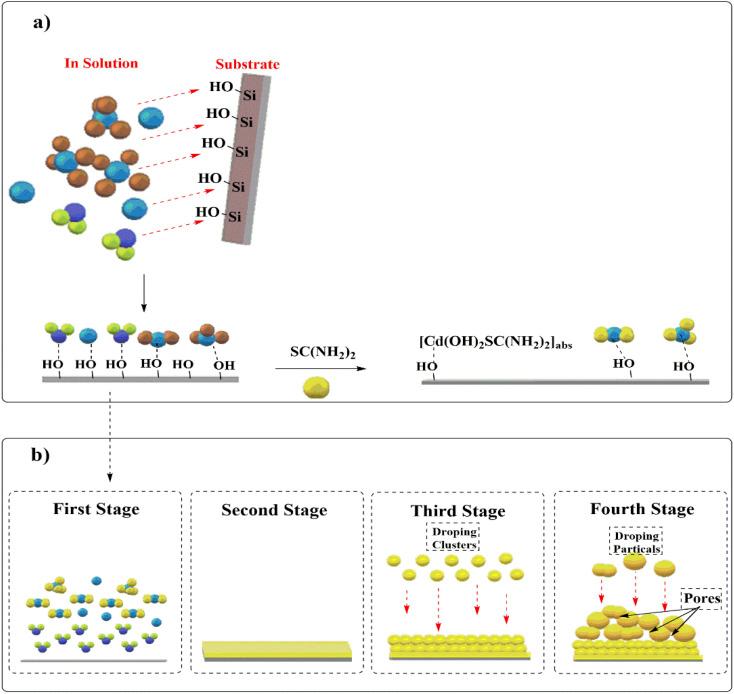

A high-quality buffer layer serves as one of the most significant issues that influences the efficiency of solar cells. Doping in semiconductors is an important strategy that can be used to control the reaction growth. In this study, the influence of Ag doping on the morphological, optical and electrical properties of CdS thin films have been obtained. Herein, we propose the mechanism of CdS film formation with and without Ag ions, and we found that changes in the reaction of preparing CdS by the chemical bath deposition (CBD) method cause a shift in the geometric composition of the CdS film. XRD showed that the position of peaks in the doped films are displaced to wider angles, indicating a drop in the crystal lattice constant. The optical analysis confirmed direct transition with an optical energy gap between 2.10 and 2.43 eV. The morphological studies show conglomerates with inhomogeneously distributed spherical grains with an increase of the Ag ratio. The electrical data revealed that the annealed Ag-doped CdS with 5% Ag has the highest carrier concentration (3.28 × 10 cm) and the lowest resistivity (45.2 Ω cm). According to the results, the optimal Ag ratio was obtained at Ag 5%, which encourages the usage of CdS in this ratio as an efficient buffer layer on photovoltaic devices.

摘要

高质量的缓冲层是影响太阳能电池效率的最重要问题之一。半导体掺杂是一种可用于控制反应生长的重要策略。在本研究中,已获得了银掺杂对硫化镉(CdS)薄膜的形貌、光学和电学性能的影响。在此,我们提出了有银离子和无银离子时CdS薄膜形成的机制,并且我们发现通过化学浴沉积(CBD)法制备CdS的反应变化会导致CdS薄膜几何组成的偏移。X射线衍射(XRD)表明,掺杂薄膜中峰的位置向更大角度移动,这表明晶格常数减小。光学分析证实为直接跃迁,光学能隙在2.10至2.43电子伏特之间。形貌研究表明,随着银比例的增加,会形成团聚体,其中球形颗粒分布不均匀。电学数据显示,含5%银的退火银掺杂CdS具有最高的载流子浓度(3.28×10 cm)和最低的电阻率(45.2Ω·cm)。根据结果,在银含量为5%时获得了最佳银比例,这促使以该比例的CdS作为光伏器件上的高效缓冲层使用。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d168/9574645/4940ab45a2a1/d2ra04790j-f1.jpg
