A Portable Band-shaped Bioimpedance System to Monitor the Body Fat and Fasting Glucose Level.

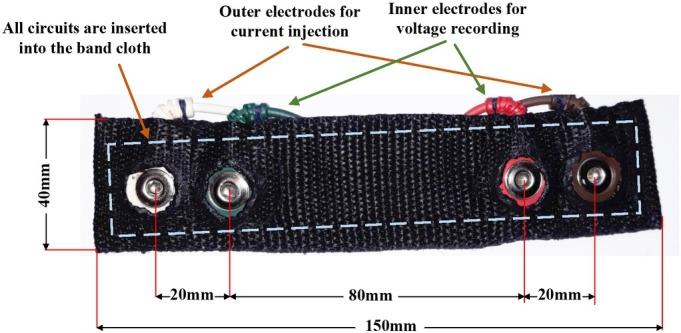

With better quality of life, obesity is becoming a worldwide disease due to over-eating and sedentary lifestyle. Therefore, daily monitoring of the glucose and body fat percentage (%) is vital to keep track of one's health. Currently, separated devices are required to monitor each parameter at home and some are still invasive to measure the glucose level. In this study, a portable band-shaped bioimpedance system is proposed to measure both parameters. The system is battery run with two main modules: the current source and the voltage recording, with minimal design to fit into a band of 150 mm x 40 mm in dimension. The impedance is measured at the frequency of 1 kHz at 30 kHz sampling frequency and in 1000 signal cycles to flatten noises. The final average impedance is calculated and evaluated in correlation with the body fat and the fasting glucose. The system was tested on 21 volunteers and 4 locations were picked for the impedance measurement: the arm under the triceps, the side of the belly, the back on one side and the thigh under the bicep femoris. The results show promising results with the arm being the best location for predicting the body fat (correlation coefficient: 0.89, 95% CI: 0.73-0.95), while the thigh impedance best correlated with the fasting glucose (correlation coefficient: 0.92, 95% CI: 0.81-0.97). These preliminary results indicate the feasibility and capacity of the proposed system as a home-based, portable and convenient system in monitoring the body fat and glucose. The system's performance will be verified and replicated in a future larger study.
