A novel digital arthrometer to measure anterior tibial translation.

BACKGROUND

Measurement of knee laxity after anterior cruciate ligament (ACL) injury is crucial for appropriate treatment and rehabilitation decision-making. This study examined the potential of a new digital arthrometer (Ligs, Innomotion, Shanghai, China) to quantify anterior tibial translation (ATT) in patients with ACL injuries and in healthy subjects.

METHODS

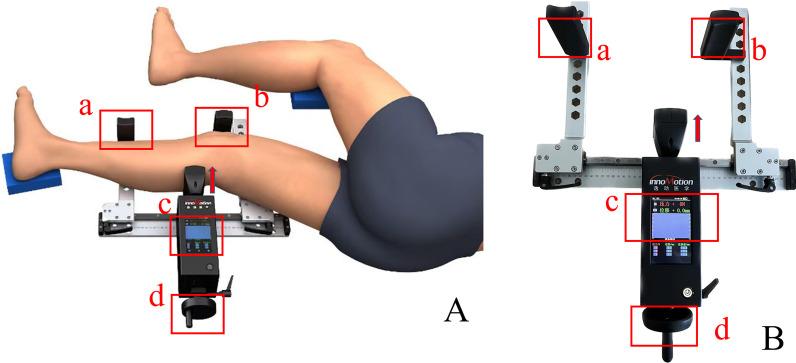

A total of 60 participants included 30 subjects with single-leg ACL injuries and 30 healthy subjects included as controls. The lower leg was immobilized. The thruster is positioned posterior to the lower leg and parallel to the tibial tuberosity in the sagittal plane. The load is applied vertically to the tibia under a dynamic load of 0-150 N, with continuous displacement recorded. The intrarater and interrater reliability will be examined. ATT and side-to-side differences (SSD) between the control and ACL injury groups were compared. Receiver operating characteristic (ROC) curves were analyzed, and the area under the curve (AUC) was calculated to determine the diagnostic accuracy of the Ligs.

RESULTS

The interrater ICC was 0.909 and the intrarater ICC was 0.943. Significant differences in the SSD were observed between the control and ACL injury groups (for all P < 0.05), with the largest effect size (ES = 1.12) at 80 N. When comparing ATT at different loads between injured and healthy sides in the ACL injury group, displacement was statistically significant at different loads. At a load of 150 N, the AUC was the maximum (0.857) and the sensitivity and specificity were 0.87 and 0.73, respectively.

CONCLUSIONS

A digital arthrometer can be used as a quantitative instrument to quantify knee laxity. Quantitative measurement of ATT and SSD under controlled loading can be an objective and effective tool for clinical practice.
