Analysis of tightly-coupled dipole phased array antennas with metasurface superstrate.

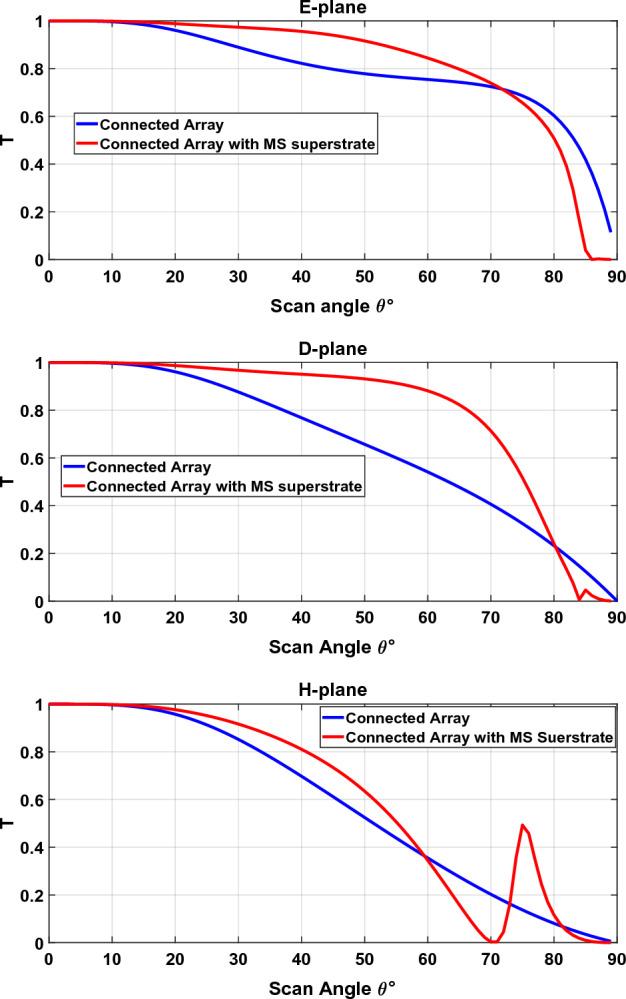

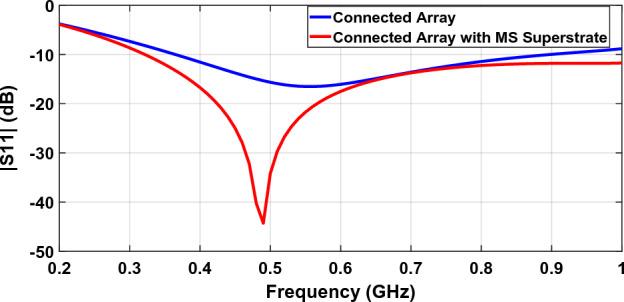

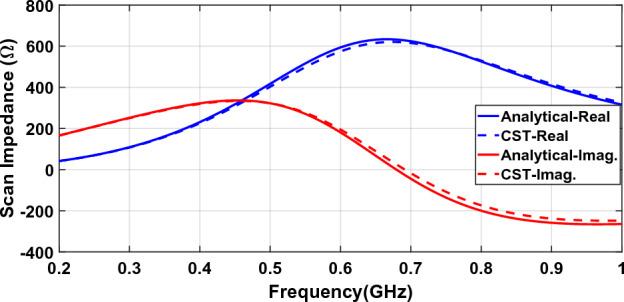

Tightly coupled dipole arrays, including connected arrays, and capacitively coupled arrays, are one of the best solutions for wideband phased array antenna designs. However, to increase bandwidth and maximum scan angle, we can use a metasurface superstrate. We propose an analytical model to compute the scan impedance of a tightly coupled dipole array loaded with a metasurface. This analytical model helps us to simplify the calculation of the scan impedance of the array and speeds up the design process of these array antennas. It is shown that the metasurface superstrate improves the bandwidth and beam scanning angles of the array. Using the proposed general transmission line model, the computation of the scan impedance of tightly coupled dipole arrays is done very fast with minimum error. The semi-analytical model is about 7 times faster than a full-wave simulation.
