Influence of Carbonation on the Properties of Steel Slag-Magnesium Silicate Hydrate (MSH) Cement.

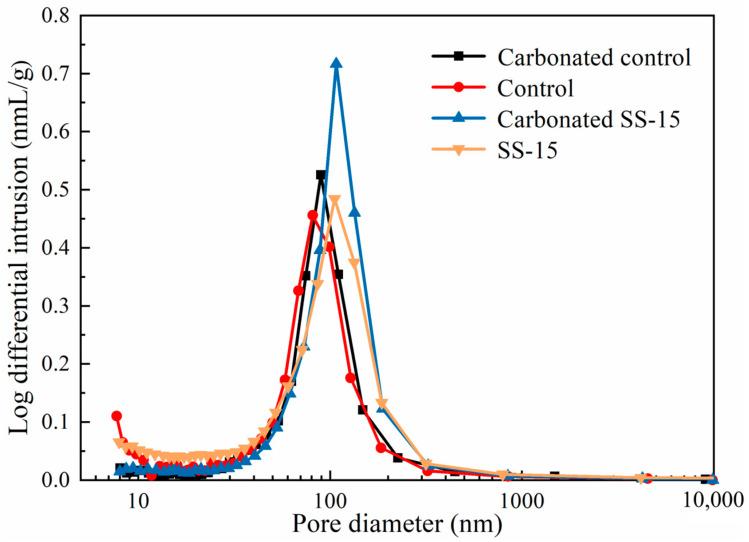

Magnesium silicate hydrate (MSH) cement has the advantages of low energy consumption, minimal environmental pollution, carbon negativity, and reduced alkalinity, but excessive drying shrinkage inhibits its application. This paper analyzed the influence of steel slag (SS) dosage, carbon dioxide partial pressure, and carbonation curing time on the compressive strength, shrinkage rate, and phase composition of MSH cement. Various analysis methods, including X-ray diffraction (XRD), thermogravimetric analysis (TGA), scanning electron microscopy (SEM), and mercury intrusion porosimetry (MIP), were used to study the hydration products and microstructure. The results showed that under normal curing conditions, MSH cement mixed with different steel slag contents experienced a decline in strength at all ages. However, the greater the amount of SS incorporated, the lesser the degree of drying shrinkage. The compressive strength of all groups was improved, and the drying shrinkage was reduced by carbonation treatment. The samples with 5%, 10%, and 15% SS content exhibited shrinkage rates of 2.19%, 1.74%, and 1.60%, respectively, after 28 days of curing. The reason was that after carbonation treatment, hydrated magnesium carbonates (HMCs) were generated in the SS-MSH cement, and a Ca-Mg-C amorphous substance formed by hydration and carbonation of CS in steel slag filled in the pores, which enhanced the density of the matrix, improved the compressive strength of the specimen, and reduced the shrinkage rate.
