印度尼西亚中爪哇省特勒莫约山热显示的微动数据及HVSR方法
Microtremor data and HVSR method of geothermal manifestation of Mt. Telomoyo, Central Java, Indonesia.
作者信息
Yuliyanto Gatot, Yulianto Tony
机构信息
Department of Physics, Faculty of Science and Mathematics, Diponegoro University, Prof. H. Soedarto, SH Street, Tembalang District, Semarang City, Central Jawa, Indonesia.
Research Cluster For Geothermal, Faculty of Science and Mathematics, Diponegoro University, Prof. H. Soedarto, SH Street, Tembalang District, Semarang City, Central Jawa, Indonesia.
出版信息
Data Brief. 2023 Oct 24;51:109721. doi: 10.1016/j.dib.2023.109721. eCollection 2023 Dec.

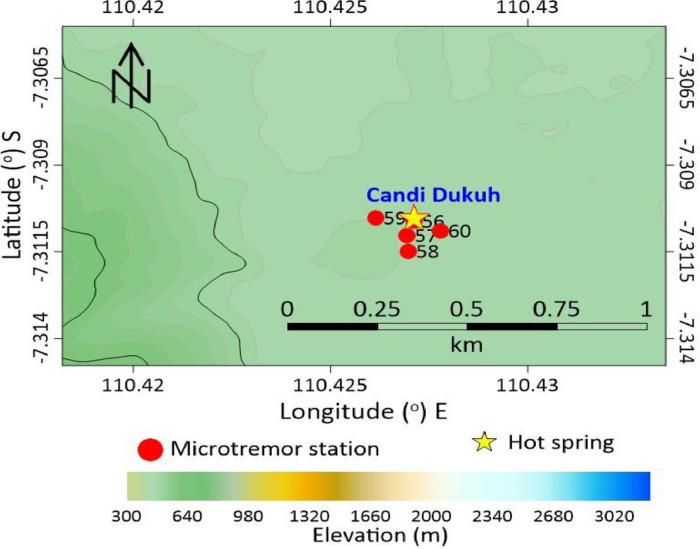

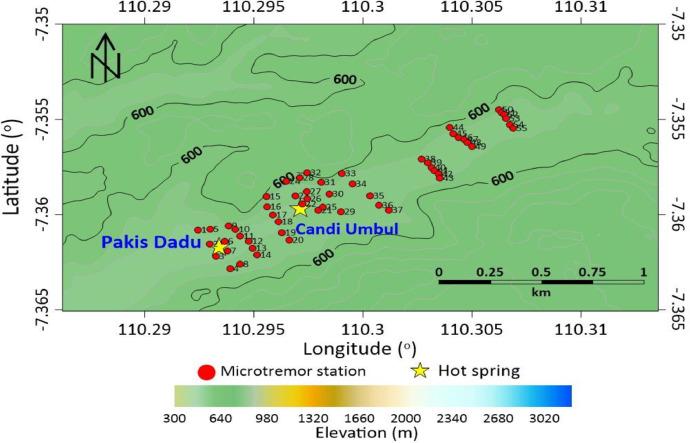

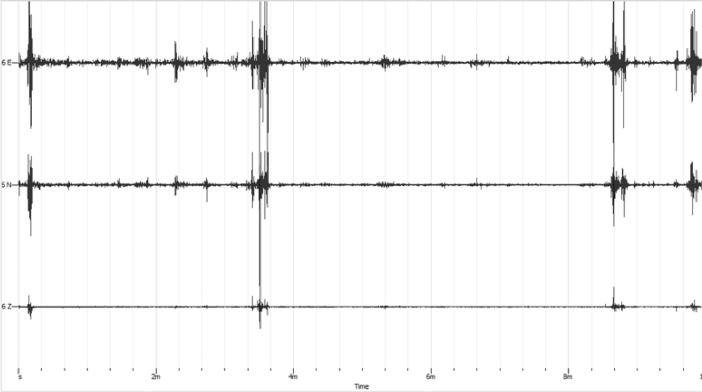

The data presented contains a collection of microtremor measurement data regarding the structures and fluid flow of the Mt. Telomoyo's geothermal manifestation, Indonesia. The data are primary data taken using 3 unit single-station microtremor devices with a total of 60 acquisition stations in The Umbul Temple, Dukuh Temple and Pakis Dadu hot spring manifestation area. Data was obtained using 3-component digital seismograph VHL PS-2B series and recorded with a data logger type GL 240 with a duration of 10 min. This data can then be used in the analysis of the Horizontal to Vertical Spectral Ratio (HVSR) which will later produce the HV curve. The compressional wave velocity v, shear wave velocity v, density, and thickness profiles of each data were obtained from carrying out the inversion process using Dinver.
所呈现的数据包含关于印度尼西亚特勒莫约火山地热显示区的结构和流体流动的微震测量数据集合。这些数据是在温布尔寺、杜库寺和帕基斯达杜温泉显示区使用3套单站微震设备获取的原始数据，总共设有60个采集站。数据是使用三分量数字地震仪VHL PS - 2B系列获取的，并由GL 240型数据记录器记录，记录时长为10分钟。然后，这些数据可用于水平与垂直谱比（HVSR）分析，随后生成HV曲线。每个数据的纵波速度v、横波速度v、密度和厚度剖面是通过使用Dinver进行反演过程得到的。
