Zheng Biyuan, Sun Xingxia, Zheng Weihao, Zhu Chenguang, Ma Chao, Pan Anlian, Li Dong, Li Shengman
Key Laboratory for Micro-Nano Physics and Technology of Hunan Province, State Key Laboratory of Chemo/Biosensing and Chemometrics, Hunan Institute of Optoelectronic Integration, College of Materials Science and Engineering, Hunan University, Changsha, 410082, China.
College of Advanced Interdisciplinary Studies and Hunan Provincial Key Laboratory of Novel Nano Optoelectronic Information Materials and Devices, National University of Defense Technology, Changsha, 410073, China.
Front Optoelectron. 2023 Dec 7;16(1):42. doi: 10.1007/s12200-023-00097-w.

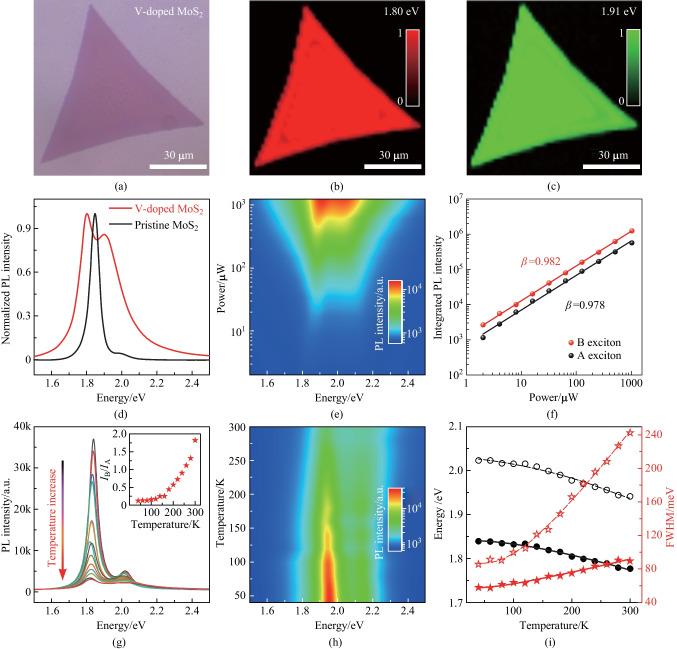

Dynamically engineering the optical and electrical properties in two-dimensional (2D) materials is of great significance for designing the related functions and applications. The introduction of foreign-atoms has previously been proven to be a feasible way to tune the band structure and related properties of 3D materials; however, this approach still remains to be explored in 2D materials. Here, we systematically demonstrate the growth of vanadium-doped molybdenum disulfide (V-doped MoS) monolayers via an alkali metal-assisted chemical vapor deposition method. Scanning transmission electron microscopy demonstrated that V atoms substituted the Mo atoms and became uniformly distributed in the MoS monolayers. This was also confirmed by Raman and X-ray photoelectron spectroscopy. Power-dependent photoluminescence spectra clearly revealed the enhanced B-exciton emission characteristics in the V-doped MoS monolayers (with low doping concentration). Most importantly, through temperature-dependent study, we observed efficient valley scattering of the B-exciton, greatly enhancing its emission intensity. Carrier transport experiments indicated that typical p-type conduction gradually arisen and was enhanced with increasing V composition in the V-doped MoS, where a clear n-type behavior transited first to ambipolar and then to lightly p-type charge carrier transport. In addition, visible to infrared wide-band photodetectors based on V-doped MoS monolayers (with low doping concentration) were demonstrated. The V-doped MoS monolayers with distinct B-exciton emission, enhanced p-type conduction and broad spectral response can provide new platforms for probing new physics and offer novel materials for optoelectronic applications.

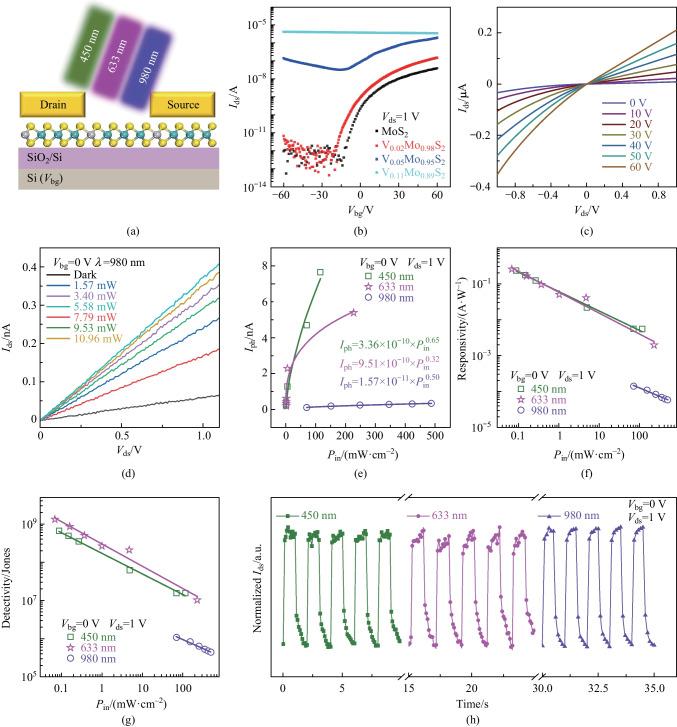

动态调控二维(2D)材料的光学和电学性质对于设计相关功能及应用具有重要意义。此前已证明引入外来原子是调控三维材料能带结构及相关性质的一种可行方法;然而,这种方法在二维材料中仍有待探索。在此,我们通过碱金属辅助化学气相沉积法系统地展示了钒掺杂二硫化钼(V掺杂MoS)单层的生长。扫描透射电子显微镜表明V原子取代了Mo原子并均匀分布在MoS单层中。拉曼光谱和X射线光电子能谱也证实了这一点。功率依赖的光致发光光谱清楚地揭示了V掺杂MoS单层(低掺杂浓度)中增强的B激子发射特性。最重要的是,通过温度依赖研究,我们观察到B激子的有效谷散射,极大地增强了其发射强度。载流子输运实验表明,典型的p型传导逐渐出现,并随着V掺杂MoS中V含量的增加而增强,其中明显的n型行为首先转变为双极性,然后转变为轻度p型电荷载流子输运。此外,还展示了基于V掺杂MoS单层(低掺杂浓度)的可见到红外宽带光电探测器。具有独特B激子发射、增强的p型传导和宽光谱响应的V掺杂MoS单层可为探索新物理提供新平台,并为光电子应用提供新型材料。
