A novel method for gas mixing and distribution in multi-chamber embryo incubators.

BACKGROUND

High-quality control of the gas environment in incubators is crucial for in vitro embryo development, which requires high accuracy, fast recovery, and low gas consumption.

OBJECTIVE

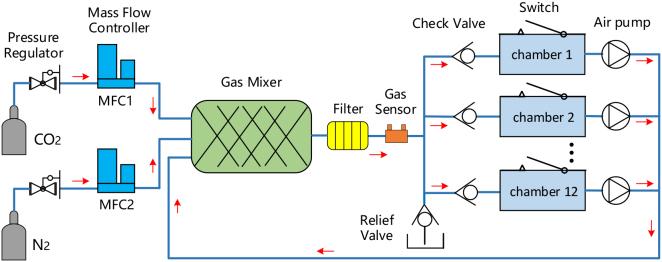

In this study, we propose a novel gas mixing and distribution system and method as an alternative solution for multi-chamber embryo incubators.

METHODS

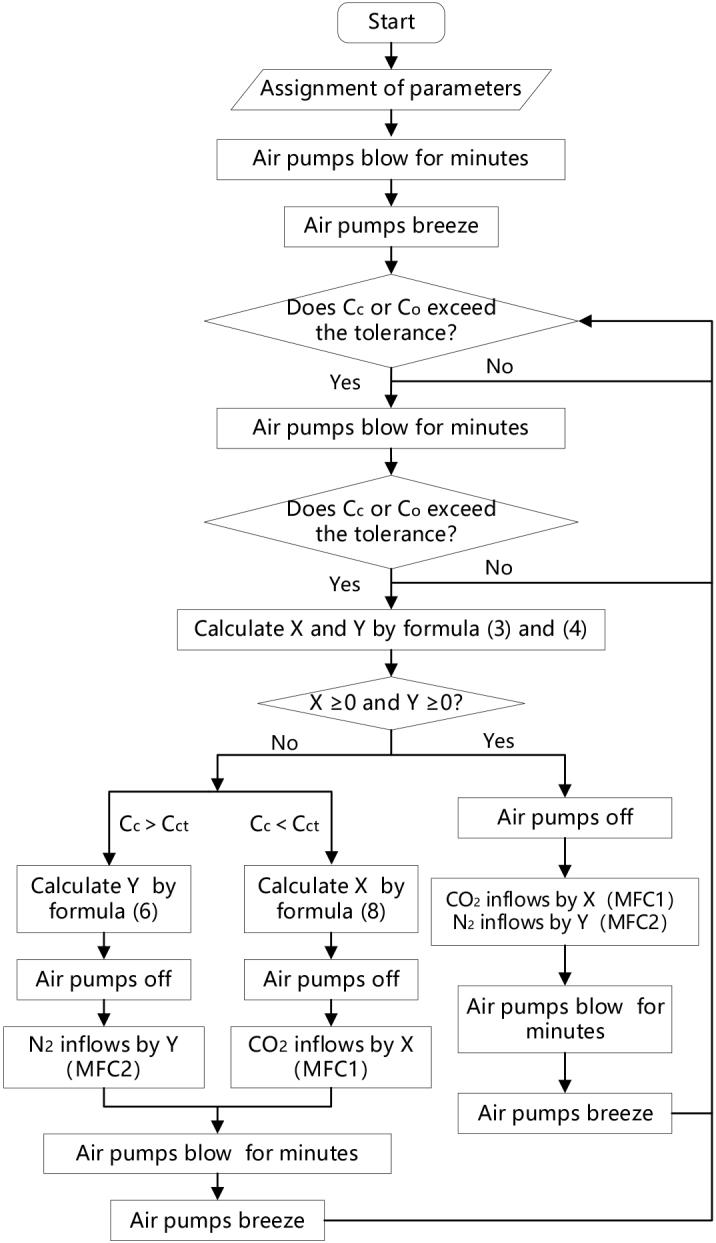

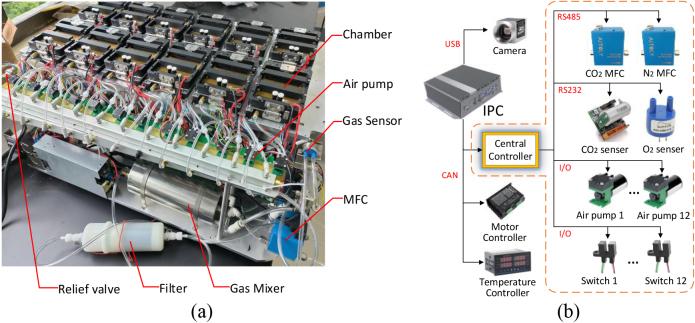

The system-based embryo incubator enables a controllable gas circulation process and a quantitative supply of CO2 and N2. To determine the optimal parameters for the mixing time and flow rate of the circulated gases, we conducted contrast experiments on the system-based incubator. To evaluate the performance of the gas system in the incubator, we conducted tests under four different initial conditions, simulating various practical application scenarios. Furthermore, we performed a mouse embryo assay to assess the system's effectiveness.

RESULTS

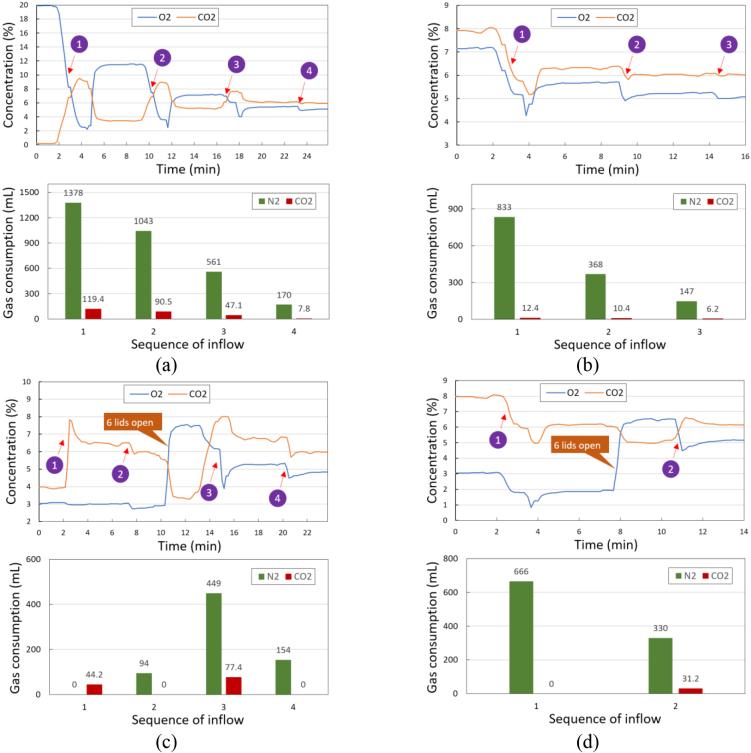

The results show that the system achieved a gas concentration accuracy of ± 0.2% (volume fraction) after stabilization, a minimum recovery time of 5 minutes, an average consumption of 8.9 L/d for N2 and 0.83 L/d for CO2 during routine operation, and a blastocyst rate exceeding 90% observed after 96 hours of culture in the incubator.

CONCLUSION

The system and method demonstrate a significant advantage in terms of low gas consumption compared to existing incubators, while still maintaining high accuracy and fast recovery.
