Corrosion-Induced Cracking Model of Concrete Considering a Transverse Constraint.

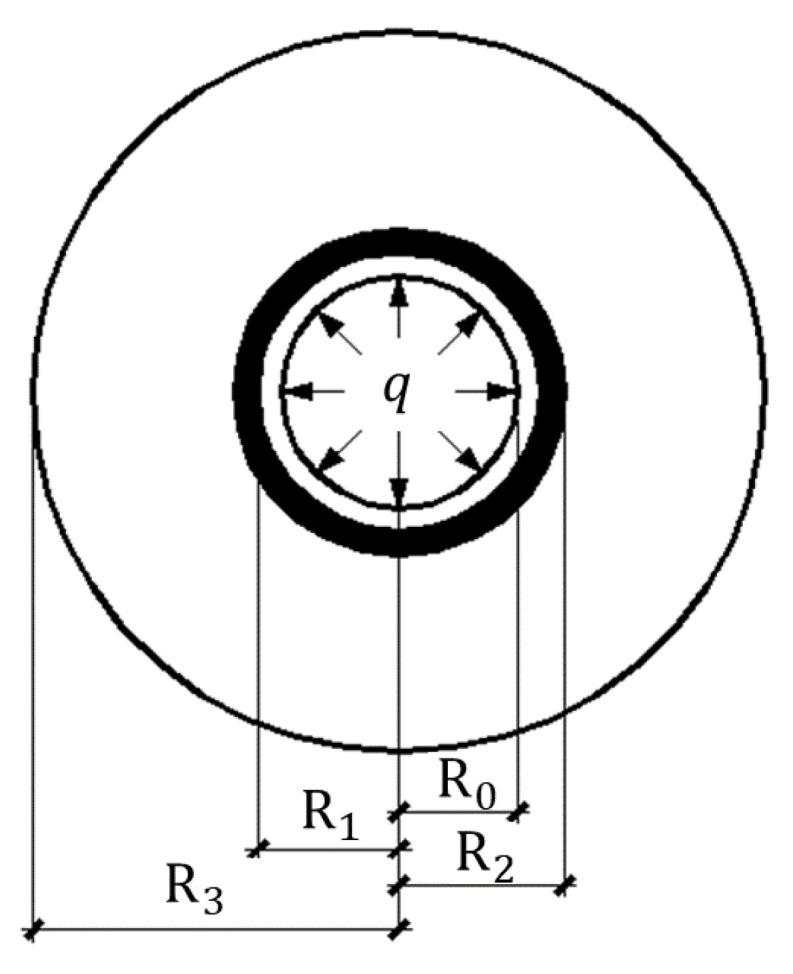

The performance of corrosion-induced cracking of reinforced concrete members under transverse constraints was studied. Based on the theory of elastic-plastic mechanics and the hypothesis of uniform corrosion of a steel bar, a three-layer hollow cylinder model was established to predict the critical corrosion of the steel bar at the time of the cracking of the concrete cover. Taking the constraint of stirrups on surrounding concrete into consideration, it can be used to predict the corrosion rate of members with stirrups at the time of the cracking of the concrete cover, which further expands the application range of the corrosion-induced cracking models of concrete. On this basis, the critical corrosion rate of concrete under different stirrup ratios at the time of cracking was measured. The calculated results of the model are in accordance with experimental data. For corner steel bars, when the stirrup spacing is less than 100 mm, the existence of stirrups can effectively delay the occurrence of rust expansion cracks and enhance the durability of the structure. On the basis of this study, the problem of corrosion expansion and cracking of the concrete cover caused by non-uniform corrosion of steel bars along longitudinal and radial directions needs to be further studied in the future.
