Automated Detection of Drusenoid Pigment Epithelial Detachments From Spectral-Domain Optical Coherence Tomography in Patients With AMD.

PURPOSE

This study aimed to develop an algorithm for automated detection of drusenoid pigment epithelial detachments (DPEDs) in optical coherence tomography (OCT) volumes of patients with age-related macular degeneration (AMD) and to compare its performance against traditional reading center grading on color-fundus photographs (CFPs).

METHODS

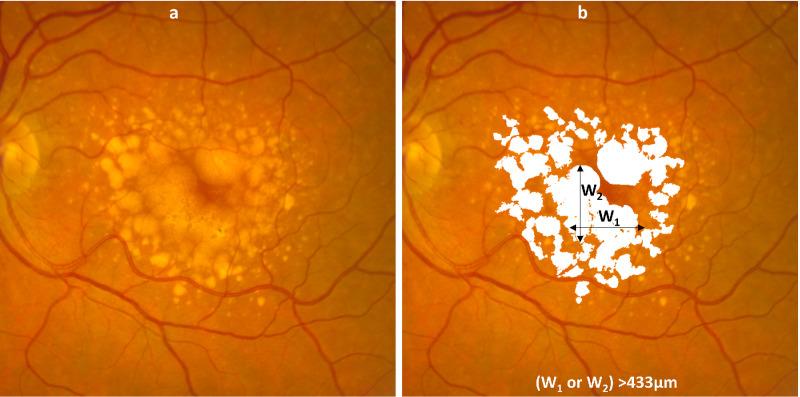

Eyes with a range of AMD severities, excluding neovascular disease, were imaged using spectral-domain OCT (SD-OCT) and paired CFPs and were followed annually for up to 5 years. DPEDs were automatically identified by segmenting the retinal pigment epithelium (RPE) and Bruch's membrane (BM) layers from the SD-OCT volumes and imposing both a minimum RPE BM height (>75 µm) and a two-dimensional length requirement (>433 µm). Comparisons in detection rates and contoured areas were made between the algorithmic SD-OCT detections and manually graded and contoured CFPs.

RESULTS

Of the 1602 visits for the 323 eyes, the automated OCT algorithm identified 139 visits (8.7%) from 50 eyes with DPED, but a reading center review of paired CFPs identified 23 visits (1.4%) from nine eyes as having DPEDs. Eyes identified with DPEDs on OCT received nine-step AMD severity scores ranging from 6 to 10, and those scores had occurrence ratios of 23/160 (14%), 89/226 (39%), 24/99 (24%), 2/63 (3%), and 1/29 (3%), respectively. On a subset of 25 visits that also underwent manual contouring of DPED lesions in CFP, the Pearson correlation coefficient for DPED areas observed by OCT and CFP was 0.85.

CONCLUSIONS

Our analysis shows the feasibility of using OCT scans to objectively detect features that historically have been detected qualitatively by expert graders on CFPs.

TRANSLATIONAL RELEVANCE

Automated detection and quantitation of high-risk features can facilitate screening patients for clinical-trial enrollment and could serve as an outcome metric [T1 (Translation-to-Humans) and T4 (Translation-to-Population-Health)].
