Yu Xuan, Zhou Jing, Wu Yaping, Bai Yan, Meng Nan, Wu Qingxia, Jin Shuting, Liu Huanhuan, Li Panlong, Wang Meiyun
Department of Radiology, Henan Provincial People's Hospital & the People's Hospital of Zhengzhou University, 7 Weiwu Road, Zhengzhou, 450000, PR China.
Biomedical Research Institute, Henan Academy of Sciences, Zhengzhou, China.
Cancer Imaging. 2024 Dec 23;24(1):172. doi: 10.1186/s40644-024-00817-1.
This study aims to evaluate the effectiveness of deep learning features derived from multi-sequence magnetic resonance imaging (MRI) in determining the O-methylguanine-DNA methyltransferase (MGMT) promoter methylation status among glioblastoma patients.

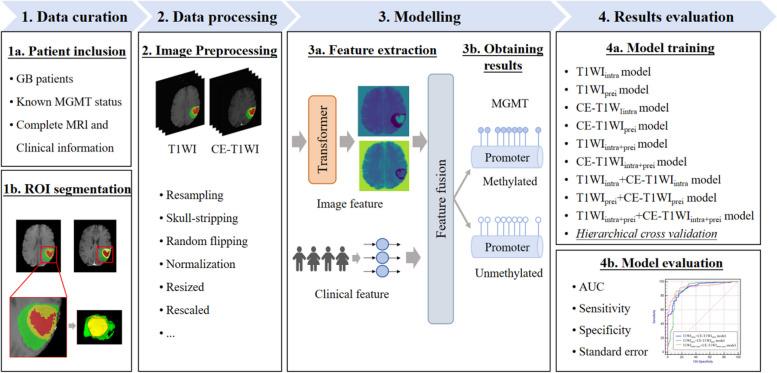

Clinical, pathological, and MRI data of 356 glioblastoma patients (251 methylated, 105 unmethylated) were retrospectively examined from the public dataset The Cancer Imaging Archive. Each patient underwent preoperative multi-sequence brain MRI scans, which included T1-weighted imaging (T1WI) and contrast-enhanced T1-weighted imaging (CE-T1WI). Regions of interest (ROIs) were delineated to identify the necrotic tumor core (NCR), enhancing tumor (ET), and peritumoral edema (PED). The ET and NCR regions were categorized as intratumoral ROIs, whereas the PED region was categorized as peritumoral ROIs. Predictive models were developed using the Transformer algorithm based on intratumoral, peritumoral, and combined MRI features. The area under the receiver operating characteristic curve (AUC) was employed to assess predictive performance.
The ROI-based models of intratumoral and peritumoral regions, utilizing deep learning algorithms on multi-sequence MRI, were capable of predicting MGMT promoter methylation status in glioblastoma patients. The combined model of intratumoral and peritumoral regions exhibited superior diagnostic performance relative to individual models, achieving an AUC of 0.923 (95% confidence interval [CI]: 0.890 - 0.948) in stratified cross-validation, with sensitivity and specificity of 86.45% and 87.62%, respectively.
The deep learning model based on MRI data can effectively distinguish between glioblastoma patients with and without MGMT promoter methylation.
本研究旨在评估多序列磁共振成像(MRI)衍生的深度学习特征在确定胶质母细胞瘤患者中O-甲基鸟嘌呤-DNA甲基转移酶(MGMT)启动子甲基化状态方面的有效性。
从公共数据集癌症影像存档中回顾性检查了356例胶质母细胞瘤患者(251例甲基化,105例未甲基化)的临床、病理和MRI数据。每位患者均接受了术前多序列脑部MRI扫描,包括T1加权成像(T1WI)和对比增强T1加权成像(CE-T1WI)。勾勒出感兴趣区域(ROI)以识别坏死肿瘤核心(NCR)、强化肿瘤(ET)和瘤周水肿(PED)。ET和NCR区域被分类为瘤内ROI,而PED区域被分类为瘤周ROI。使用基于瘤内、瘤周和组合MRI特征的Transformer算法开发预测模型。采用受试者工作特征曲线下面积(AUC)评估预测性能。
基于多序列MRI利用深度学习算法的瘤内和瘤周区域基于ROI的模型能够预测胶质母细胞瘤患者的MGMT启动子甲基化状态。瘤内和瘤周区域的组合模型相对于单个模型表现出更好的诊断性能,在分层交叉验证中AUC为0.923(95%置信区间[CI]:0.890 - 0.948),敏感性和特异性分别为86.45%和87.62%。
基于MRI数据的深度学习模型可以有效区分有和没有MGMT启动子甲基化的胶质母细胞瘤患者。
