Orbital Engineering Band Degeneracy in a Dual-Square Carbon-Oxide Framework.

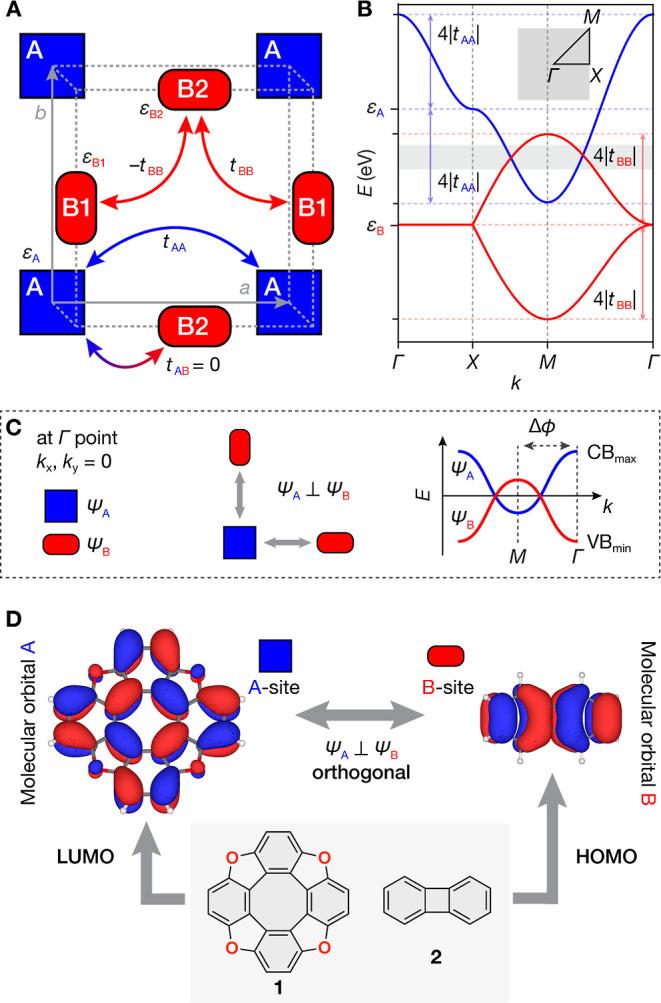

Electron band degeneracies in momentum space give rise to exotic quantum phenomena that have sparked intense interest in condensed matter physics and materials science. Nodal-lines─isolines in -space formed by the incidental touching of two bands that share the same energy but belong to discrete eigenstates─arise in the presence of symmetries that preclude effective hybridization. Despite recent advances in the design, bottom-up assembly, and engineering of exotic electronic states in graphene nanomaterials, the extension of this approach to access synthetic two-dimensional (2D) quantum materials derived from metal- or covalent-organic frameworks (COFs) has lagged behind. Here we present a molecular orbital engineering approach for designing and fabricating an edge-centered dual square lattice within a π-conjugated 2D-tetraoxa[8]circulene (2D-TOC) COF. First-principles calculations and scanning tunnelling spectroscopy reveal the emergence of Frontier states at the center of a 3 × 3 lattice that give rise to Dirac nodal-lines in 2D-TOC. Our findings not only provide a general guide for the design of conjugated COFs with custom tailored electronic properties from molecular fragments but enable the exploration of emergent topological phenomena in synthetic 2D materials with potential application for high-speed, low-power data processing, transmission, and storage.
