CMG-biotools,一个用于基础比较微生物基因组学的免费工作平台。
CMG-biotools, a free workbench for basic comparative microbial genomics.
机构信息
Center for Biological Sequence Analysis, Department of Systems Biology, Technical University of Denmark, Kgs. Lyngby, Denmark.
出版信息
PLoS One. 2013;8(4):e60120. doi: 10.1371/journal.pone.0060120. Epub 2013 Apr 5.
BACKGROUND
Today, there are more than a hundred times as many sequenced prokaryotic genomes than were present in the year 2000. The economical sequencing of genomic DNA has facilitated a whole new approach to microbial genomics. The real power of genomics is manifested through comparative genomics that can reveal strain specific characteristics, diversity within species and many other aspects. However, comparative genomics is a field not easily entered into by scientists with few computational skills. The CMG-biotools package is designed for microbiologists with limited knowledge of computational analysis and can be used to perform a number of analyses and comparisons of genomic data.
RESULTS

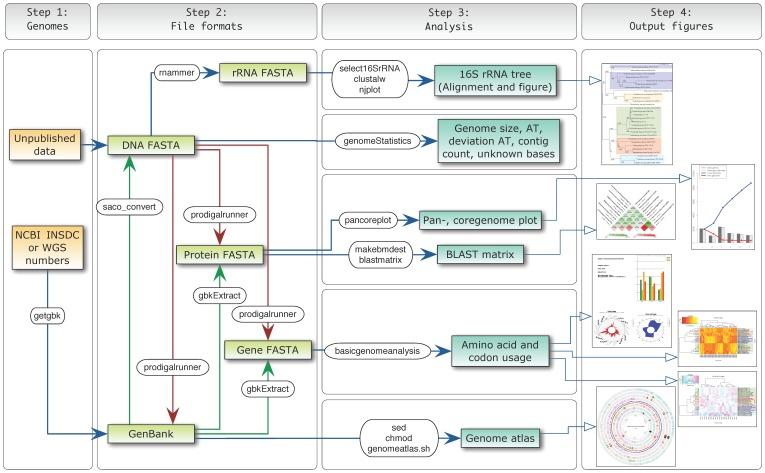

The CMG-biotools system presents a stand-alone interface for comparative microbial genomics. The package is a customized operating system, based on Xubuntu 10.10, available through the open source Ubuntu project. The system can be installed on a virtual computer, allowing the user to run the system alongside any other operating system. Source codes for all programs are provided under GNU license, which makes it possible to transfer the programs to other systems if so desired. We here demonstrate the package by comparing and analyzing the diversity within the class Negativicutes, represented by 31 genomes including 10 genera. The analyses include 16S rRNA phylogeny, basic DNA and codon statistics, proteome comparisons using BLAST and graphical analyses of DNA structures.
CONCLUSION
This paper shows the strength and diverse use of the CMG-biotools system. The system can be installed on a vide range of host operating systems and utilizes as much of the host computer as desired. It allows the user to compare multiple genomes, from various sources using standardized data formats and intuitive visualizations of results. The examples presented here clearly shows that users with limited computational experience can perform complicated analysis without much training.
背景
如今,已测序的原核生物基因组数量是 2000 年的 100 多倍。经济实惠的基因组 DNA 测序为微生物基因组学开辟了全新的研究途径。基因组学的真正威力体现在比较基因组学上,它可以揭示菌株特异性特征、种内多样性等诸多方面。然而,比较基因组学是一个计算技能有限的科学家难以涉足的领域。CMG-biotools 包专为计算分析知识有限的微生物学家设计,可以用于对基因组数据进行多种分析和比较。
结果
CMG-biotools 系统为比较微生物基因组学提供了一个独立的界面。该软件包是一个定制的操作系统,基于 Xubuntu 10.10,可通过开源 Ubuntu 项目获得。该系统可以安装在虚拟机上,允许用户在任何其他操作系统旁边运行该系统。所有程序的源代码都遵循 GNU 许可证,因此如果需要,用户可以将程序转移到其他系统。在这里,我们通过比较和分析包括 10 个属的 31 个基因组在内的 Negativicutes 类内的多样性来演示该软件包。分析包括 16S rRNA 系统发育、基本 DNA 和密码子统计、使用 BLAST 的蛋白质组比较以及 DNA 结构的图形分析。
结论
本文展示了 CMG-biotools 系统的强大功能和多样化用途。该系统可以安装在各种主机操作系统上,并根据需要充分利用主机计算机。它允许用户使用标准化的数据格式和直观的可视化结果来比较来自不同来源的多个基因组。本文提供的示例清楚地表明,具有有限计算经验的用户无需大量培训即可执行复杂的分析。
