针对可生物降解引导骨再生膜应用的热挤压Zn-0.5Cu-xFe合金的适当适配性能。

Appropriately adapted properties of hot-extruded Zn-0.5Cu-xFe alloys aimed for biodegradable guided bone regeneration membrane application.

作者信息

Zhang Wentai, Li Ping, Shen Gang, Mo Xiaoshan, Zhou Chao, Alexander Dorothea, Rupp Frank, Geis-Gerstorfer Jürgen, Zhang Haijun, Wan Guojiang

机构信息

Key Laboratory of Advanced Technologies of Materials, Ministry of Education, School of Materials Science and Engineering, Southwest Jiaotong University, Chengdu, 610031, China.

Section Medical Materials Science and Technology, University Hospital Tübingen, Osianderstrasse 2-8, Tübingen, 72076, Germany.

出版信息

Bioact Mater. 2020 Oct 9;6(4):975-989. doi: 10.1016/j.bioactmat.2020.09.019. eCollection 2021 Apr.

Abstract

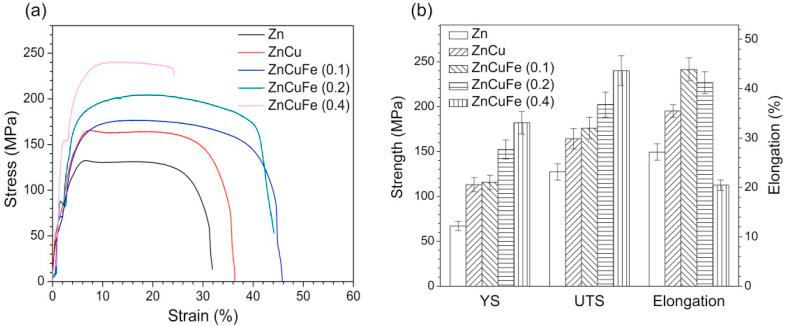

Appropriately adapted comprehensive mechanical properties, degradation behavior and biocompatibility are prerequisites for the application of Zn-based biodegradable implants. In this study, hot-extruded Zn-0.5Cu-xFe (x = 0.1, 0.2 and 0.4 wt%) alloys were fabricated as candidates for biodegradable materials for guided bone regeneration (GBR) membranes. The hot-extrusion process and Cu alloying were expected mostly to enhance the mechanical properties, and the Fe alloying was added mainly for regulating the degradation. The microstructure, mechanical properties and degradation behavior were systematically investigated. The ZnCuFe alloys were composed of a Zn matrix and FeZn phase. With increasing Fe content, a higher FeZn phase precipitation with larger particles was observed. Since elongation declined significantly until fracture with increasing Fe content up to 0.4 wt%, the ZnCuFe (0.2 wt%) alloy achieved a good balance between mechanical strength and ductility, with an ultimate tensile strength of 202.3 MPa and elongation at fracture of 41.2%. Moreover, the addition of Fe successfully accelerated the degradation of ZnCuFe alloys. The ZnCuFe (0.2 wt%) alloy showed relatively uniform corrosion in the long-term degradation test. Furthermore, extracts of the ZnCuFe (0.2 wt%) alloy showed no apparent cytotoxic effects against L929 fibroblasts, Saos-2 osteoblasts or TAg periosteal cells. The ZnCuFe (0.2 wt%) alloy exhibited the potential to inhibit bacterial adhesion of and mixed oral bacteria. Our study provides evidence that the ZnCuFe (0.2 wt%) alloy can represent a promising material for the application as a suitable GBR membrane.

摘要

具有适当适配的综合力学性能、降解行为和生物相容性是锌基可生物降解植入物应用的先决条件。在本研究中,制备了热挤压的Zn-0.5Cu-xFe(x = 0.1、0.2和0.4 wt%)合金,作为引导骨再生(GBR)膜生物可降解材料的候选材料。热挤压工艺和铜合金化主要预期用于增强力学性能,添加铁合金主要是为了调节降解。系统研究了其微观结构、力学性能和降解行为。ZnCuFe合金由锌基体和FeZn相组成。随着铁含量的增加,观察到更高的FeZn相析出且颗粒更大。由于随着铁含量增加至0.4 wt%,直至断裂伸长率显著下降,ZnCuFe(0.2 wt%)合金在机械强度和延展性之间实现了良好平衡,其极限抗拉强度为202.3 MPa,断裂伸长率为41.2%。此外,铁的添加成功加速了ZnCuFe合金的降解。ZnCuFe(0.2 wt%)合金在长期降解试验中表现出相对均匀的腐蚀。此外,ZnCuFe(0.2 wt%)合金提取物对L929成纤维细胞、Saos-2成骨细胞或TAg骨膜细胞没有明显的细胞毒性作用。ZnCuFe(0.2 wt%)合金具有抑制变形链球菌和混合口腔细菌粘附的潜力。我们的研究提供了证据,表明ZnCuFe(0.2 wt%)合金可成为一种有前景的材料,适用于作为合适的GBR膜。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/b970/7560602/46e0186b064d/fx1.jpg
