OBJECTIVE

We aim to quantitatively characterize the crosstalk between VEGF- and FGF-mediated angiogenic signaling and endothelial sprouting, to gain mechanistic insights and identify novel therapeutic strategies.

METHODS

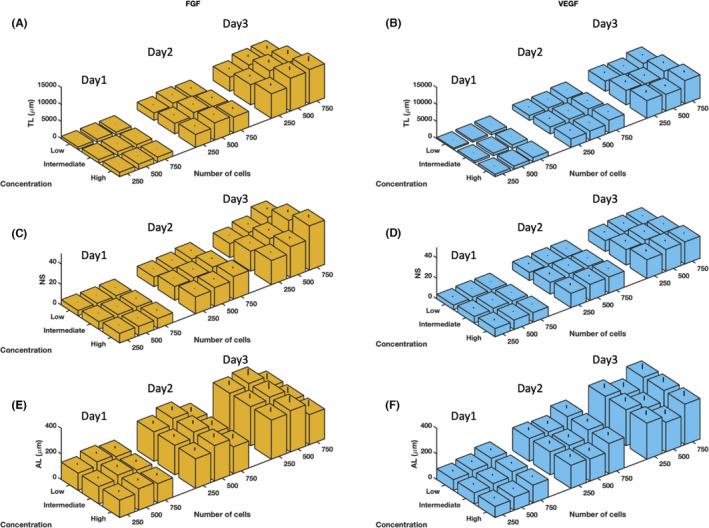

We constructed an experimentally validated hybrid agent-based mathematical model that characterizes endothelial sprouting driven by FGF- and VEGF-mediated signaling. We predicted the total sprout length, number of sprouts, and average length by the mono- and co-stimulation of FGF and VEGF.

RESULTS

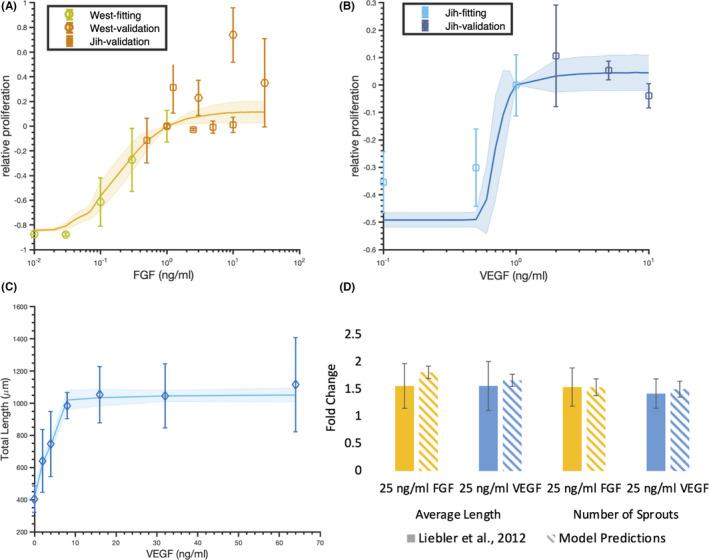

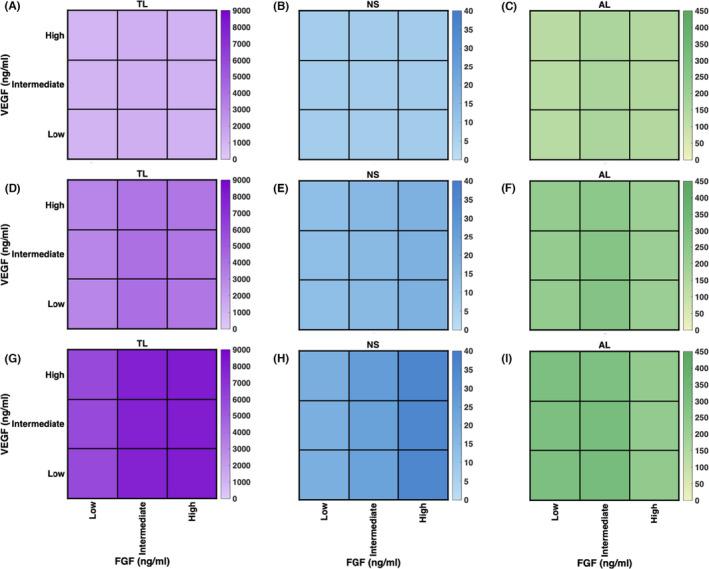

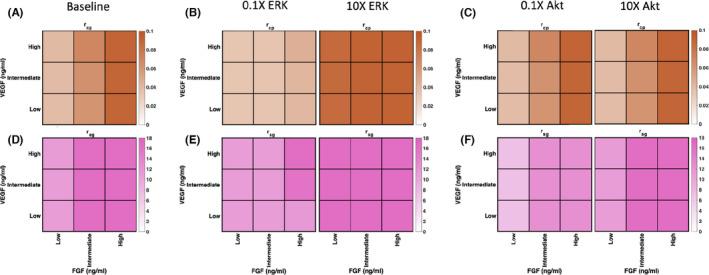

The experimentally fitted and validated model predicts that FGF induces stronger angiogenic responses in the long-term compared with VEGF stimulation. Also, FGF plays a dominant role in the combination effects in endothelial sprouting. Moreover, the model suggests that ERK and Akt pathways and cellular responses contribute differently to the sprouting process. Last, the model predicts that the strategies to modulate endothelial sprouting are context-dependent, and our model can identify potential effective pro- and anti-angiogenic targets under different conditions and study their efficacy.

CONCLUSIONS

The model provides detailed mechanistic insight into VEGF and FGF interactions in sprouting angiogenesis. More broadly, this model can be utilized to identify targets that influence angiogenic signaling leading to endothelial sprouting and to study the effects of pro- and anti-angiogenic therapies.
