用于软驱动的pH诱导3D可打印壳聚糖水凝胶
pH-Induced 3D Printable Chitosan Hydrogels for Soft Actuation.
作者信息
Maiz-Fernández Sheila, Pérez-Álvarez Leyre, Silván Unai, Vilas-Vilela José Luis, Lanceros-Méndez Senentxu
机构信息
BCMaterials (Basque Center for Materials), Applications and Nanostructures, UPV/EHU Science Park, 48940 Leioa, Spain.
Macromolecular Chemistry Group (LABQUIMAC), Department of Physical Chemistry, Faculty of Science and Technology, University of the Basque Country, UPV/EHU, Barrio Sarriena, s/n, 48940 Leioa, Spain.
出版信息
Polymers (Basel). 2022 Feb 8;14(3):650. doi: 10.3390/polym14030650.
Three-dimensional (3D) printing represents a suitable technology for the development of biomimetic scaffolds for biomedical and tissue engineering applications. However, hydrogel-based inks' printability remains a challenge due to their restricted print accuracy, mechanical properties, swelling or even cytotoxicity. Chitosan is a natural-derived polysaccharide that has arisen as a promising bioink due to its biodegradability, biocompatibility, sustainability and antibacterial properties, among others, as well as its ability to form hydrogels under the influence of a wide variety of mechanisms (thermal, ionic, pH, covalent, etc.). Its poor solubility at physiological pH, which has traditionally restricted its use, represents, on the contrary, the simplest way to induce chitosan gelation. Accordingly, herein a NaOH strong base was employed as gelling media for the direct 3D printing of chitosan structures. The obtained hydrogels were characterized in terms of morphology, chemical interactions, swelling and mechanical and rheological properties in order to evaluate the influence of the gelling solution's ionic strength on the hydrogel characteristics. Further, the influence of printing parameters, such as extrusion speed (300, 600 and 800 mm/min) and pressure (20-35 kPa) and the cytocompatibility were also analyzed. In addition, printed gels show an electro-induced motion due to their polycationic nature, which highlights their potential as soft actuators and active scaffolds.

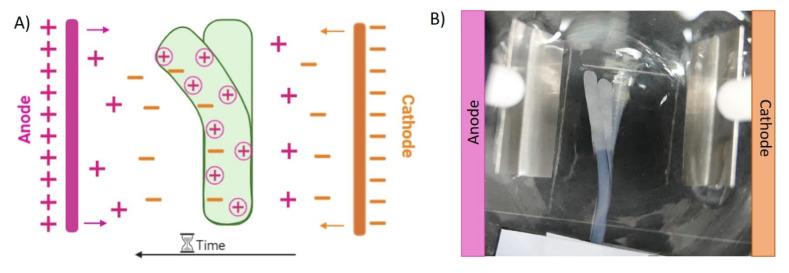

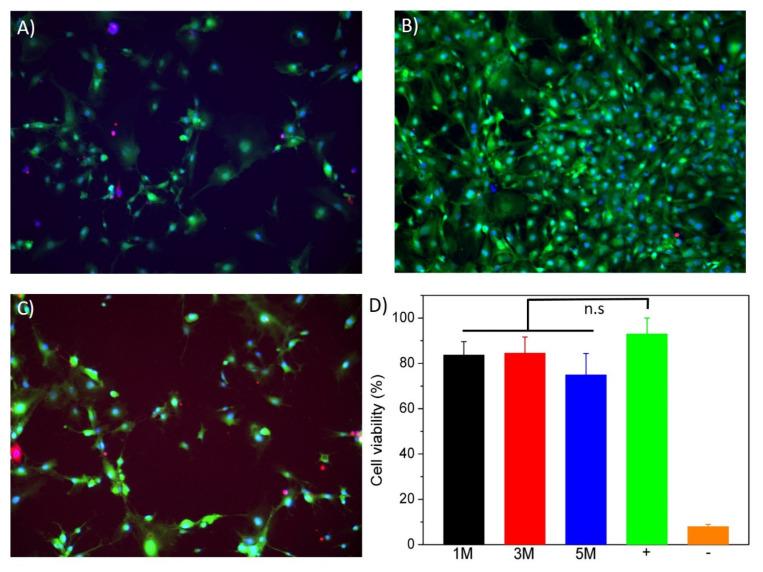

三维(3D)打印是一种适用于开发用于生物医学和组织工程应用的仿生支架的技术。然而,基于水凝胶的墨水的可打印性仍然是一个挑战,因为它们的打印精度受限、机械性能不佳、存在溶胀甚至细胞毒性问题。壳聚糖是一种天然衍生的多糖,由于其具有生物可降解性、生物相容性、可持续性和抗菌特性等,以及在多种机制(热、离子、pH、共价等)影响下形成水凝胶的能力,已成为一种有前景的生物墨水。其在生理pH下的低溶解性传统上限制了它的使用,相反,这却是诱导壳聚糖凝胶化最简单的方法。因此,本文采用NaOH强碱作为凝胶介质,用于壳聚糖结构的直接3D打印。对所得水凝胶的形态、化学相互作用、溶胀以及机械和流变性能进行了表征,以评估凝胶溶液离子强度对水凝胶特性的影响。此外,还分析了打印参数(如挤出速度(300、600和800毫米/分钟)和压力(20 - 35千帕))以及细胞相容性的影响。此外,由于其聚阳离子性质,打印凝胶表现出电诱导运动,这突出了它们作为软致动器和活性支架的潜力。
