Linus Pauling Institute of Science and Medicine, 440 Page Mill Road, Palo Alto, CA 94306.
Proc Natl Acad Sci U S A. 1989 Nov;86(22):8595-9. doi: 10.1073/pnas.86.22.8595.

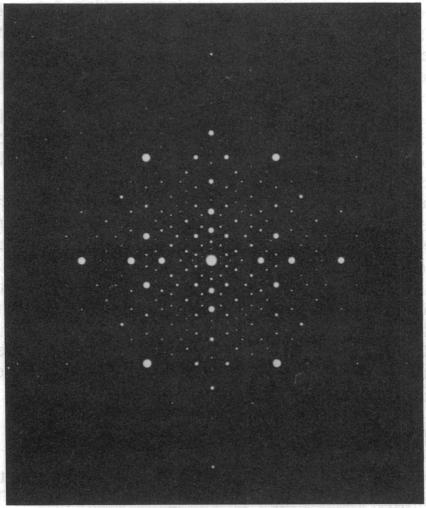

The twofold-axis electron-diffraction photographs of icosahedral quasicrystals are of three kinds, reflecting three different structures of the cubic crystals that by icosahedral twinning form the quasicrystals. The first kind, represented by Al(13)Cu(4)Fe(3), contains two very large icosahedral complexes, each of about 4680 atoms, in the body-centered arrangement, with six smaller icosahedral complexes (104 atoms each) in the principal interstices. The second kind, represented by Al(5)Mn, contains four of the very large complexes in the face-centered arrangement (cubic close packing), with four of the smaller clusters in the interstices. The third kind, represented by Al(6)CuLi(3), contains eight icosahedral complexes, each of about 1350 atoms, in the beta-W arrangement. The supporting evidence for these cubic structures is discussed as well as other evidence showing that the simple quasicrystal theory, which states that quasicrystals do not involve any translational identity operations, has to be modified.
二十面体准晶的双轴电子衍射照片有三种,反映了通过二十面体孪晶形成准晶的立方晶体的三种不同结构。第一种,以 Al(13)Cu(4)Fe(3)为例,包含两个非常大的大约有 4680 个原子的二十面体复合物,在体心排列,在主要的空隙中有六个较小的二十面体复合物(每个 104 个原子)。第二种,以 Al(5)Mn 为例,在面心排列(立方密堆积)中有四个非常大的复合物,在空隙中有四个较小的簇。第三种,以 Al(6)CuLi(3)为例,有八个大约有 1350 个原子的二十面体复合物,呈β-W 排列。讨论了这些立方结构的支持证据,以及其他表明简单准晶理论(即准晶不涉及任何平移同构操作)必须修改的证据。
