Martí Angel A, Jockusch Steffen, Li Zengmin, Ju Jingyue, Turro Nicholas J
Department of Chemistry, Columbia University, New York, NY 10027, USA.
Nucleic Acids Res. 2006 Apr 4;34(6):e50. doi: 10.1093/nar/gkl134.

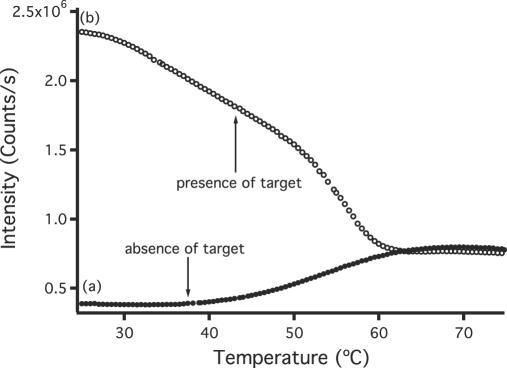

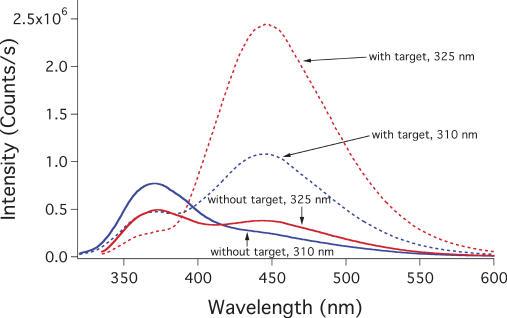

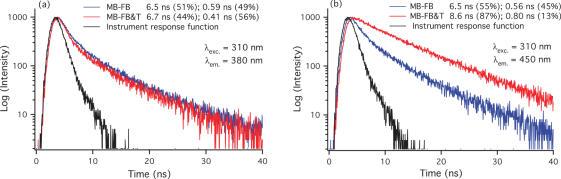

We report the design, synthesis and characterization of a novel molecular beacon (MB-FB) which uses the fluorescent bases (FB) 2-aminopurine (AP) and pyrrolo-dC (P-dC) as fluorophores. Because the quantum yield of these FB depend on hybridization with complementary target, the fluorescent properties of MB-FB were tuned by placing the FB site specifically within the MB such that hybridization with complementary sequence switches from single strand to double strand for AP and vice versa for P-dC. The MB-FB produces a ratiometric fluorescence increase (the fluorescence emission of P-dC over that of AP in the presence and absence of complementary sequence) of 8.5 when excited at 310 nm, the maximum absorption of AP. This ratiometric fluorescence is increased to 14 by further optimizing excitation (325 nm). The fluorescence lifetime is also affected by the addition of target, producing a change in the long-lived component from 6.5 to 8.7 ns (Exc. 310 nm, Em. 450 nm). Thermal denaturation profiles monitored at 450 nm (P-dC emission) show a cooperative denaturation of the MB-FB with a melting temperature of 53 degrees C. The thermal denaturation profile of MB-FB hybridized with its target shows a marked fluorescence reduction at 53 degrees C, consistent with a transition from double stranded helix to random coil DNA.
我们报告了一种新型分子信标(MB-FB)的设计、合成及表征,该分子信标使用荧光碱基(FB)2-氨基嘌呤(AP)和吡咯-dC(P-dC)作为荧光团。由于这些FB的量子产率取决于与互补靶标的杂交,因此通过将FB位点特异性地置于MB内来调节MB-FB的荧光特性,使得与互补序列杂交时,AP从单链转变为双链,而P-dC则相反。当在310 nm(AP的最大吸收波长)激发时,MB-FB产生8.5的比率荧光增加(在存在和不存在互补序列的情况下,P-dC的荧光发射相对于AP的荧光发射)。通过进一步优化激发波长(325 nm),该比率荧光增加到14。荧光寿命也受靶标的添加影响,长寿命组分从6.5 ns变为8.7 ns(激发波长310 nm,发射波长450 nm)。在450 nm(P-dC发射)监测的热变性曲线显示MB-FB的协同变性,解链温度为53℃。与靶标杂交的MB-FB的热变性曲线在53℃时显示出明显的荧光降低,这与从双链螺旋到无规卷曲DNA的转变一致。
