Department of Mechanics and Engineering Science, Fudan University, 200433, Shanghai, China.
Nanoscale Res Lett. 2010 Jan 16;5(4):692-700. doi: 10.1007/s11671-010-9533-1.

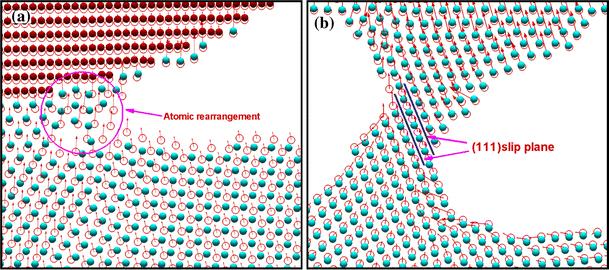

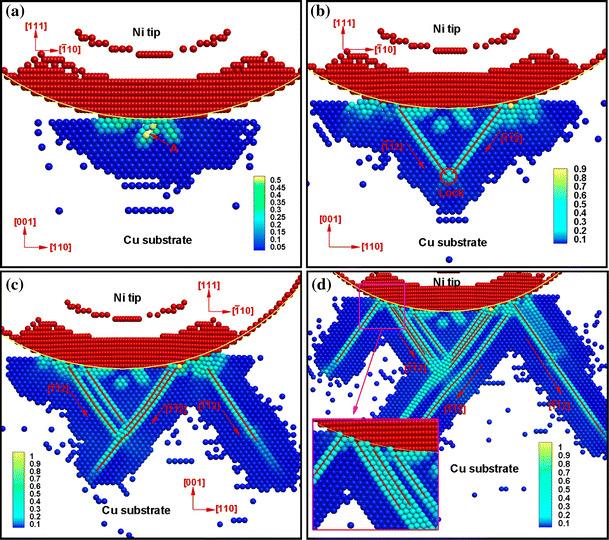

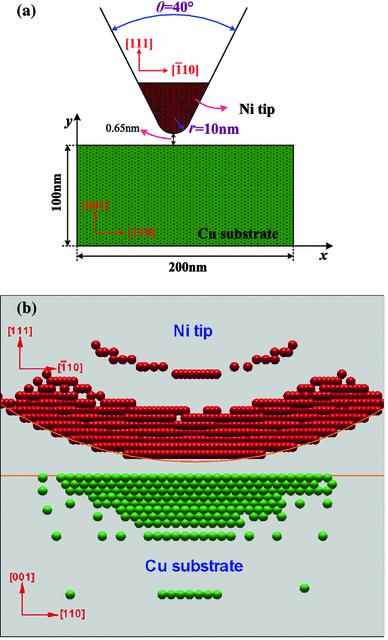

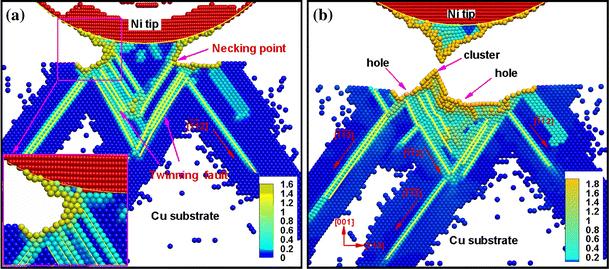

The process of nanocontact including indentation and retraction between a large Ni tip and a Cu substrate is investigated using quasicontinuum (QC) method. The multiscale model reveals that significant plastic deformation occurs during the process of nanocontact between Ni tip and Cu substrate. Plastic deformation is observed in an area as large as 20 nm wide and 10 nm thick beneath Ni tip during the indentation and retraction. Also, plastic deformation at a deep position in the Cu substrate does not disappear after the neck failure. The analysis of generalized planar fault energy curve shows that there is a strong tendency for deformation twinning in Cu substrate. However, deformation twinning will be retarded during indentation due to the high stress intensity caused by stepped surface of Ni tip. The abrupt drop of load curve during tip retraction is attributed to the two different fracture mechanisms. One is atomic rearrangement near the interface of Ni tip and Cu substrate at the initial stage of neck fracture, the other is shear behavior of adjacent {111} planes at the necking point. A comparison of the critical load and critical contact radius for neck fracture is also made between theoretical values and our numerical results.
采用准连续(QC)方法研究了大 Ni 尖端和 Cu 衬底之间的纳米接触压痕和回缩过程。多尺度模型表明,Ni 尖端和 Cu 衬底之间的纳米接触过程中会发生显著的塑性变形。在压痕和回缩过程中,Ni 尖端下宽达 20nm、厚达 10nm 的区域会出现塑性变形。此外,Cu 衬底深部位置的塑性变形在颈缩失效后并未消失。广义平面位错能曲线的分析表明,Cu 衬底中存在强烈的变形孪晶倾向。然而,由于 Ni 尖端表面的台阶引起的高应力强度,在压痕过程中变形孪晶会受到阻碍。回缩过程中载荷曲线的突然下降归因于两个不同的断裂机制。一个是颈缩断裂初始阶段 Ni 尖端和 Cu 衬底界面附近的原子重排,另一个是颈缩点相邻{111}面的剪切行为。还比较了理论值和数值结果之间颈缩断裂的临界载荷和临界接触半径。
