Shen Fwu Ming, Lush Shie Fu
Acta Crystallogr Sect E Struct Rep Online. 2011 Jan 15;67(Pt 2):m161-2. doi: 10.1107/S1600536811000286.

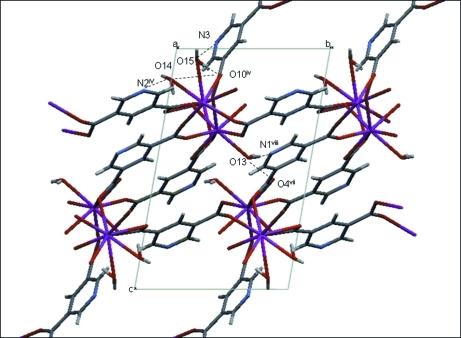

The asymmetric unit of the title compound, Ce(2)(C(7)H(3)NO(4))(3)(H(2)O)(3), contains two Ce(III) cations, three pyridine-3,5-dicarboxyl-ate (pyd) anions and three coordinated water mol-ecules. One Ce(III) cation is coordinated by seven carboxyl-ate O atoms from six pyd anions and two water mol-ecules in a square-face-capped square-anti-prismatic geometry. Another Ce(III) cation is coordinated by seven O atoms from six pdy anions and one water mol-ecule in a bicapped trigonal-prismatic geometry. The pdy anions bridge the Ce(III) cations, forming the three-dimensional polymeric structure. The crystal structure contains extensive O-H⋯O, O-H⋯N and weak C-H⋯O hydrogen bonds. π-π stacking is present in the crystal structure, the shortest centroid-centroid distance between parallel pyridine rings being 3.509 (4) Å.
标题化合物[Ce₂(C₇H₃NO₄)₃(H₂O)₃]ₙ的不对称单元包含两个Ce(III)阳离子、三个吡啶-3,5-二羧酸根(pyd)阴离子和三个配位水分子。一个Ce(III)阳离子由来自六个pyd阴离子的七个羧酸根O原子和两个水分子以面帽方反棱柱几何构型配位。另一个Ce(III)阳离子由来自六个pdy阴离子的七个O原子和一个水分子以双帽三棱柱几何构型配位。pdy阴离子桥连Ce(III)阳离子,形成三维聚合结构。晶体结构包含广泛的O—H⋯O、O—H⋯N和弱C—H⋯O氢键。晶体结构中存在π-π堆积,平行吡啶环之间最短的质心-质心距离为3.509 (4) Å。
