Biphenyl-4,4'-diyl bis-(2,2,5,5-tetra-methyl-1-oxyl-3-pyrroline-3-carboxyl-ate).

作者信息

Margraf Dominik, Schuetz Denise, Prisner Thomas F, Bats Jan W

出版信息

Acta Crystallogr Sect E Struct Rep Online. 2009 Jul 4;65(Pt 8):o1784. doi: 10.1107/S1600536809024659.

Abstract

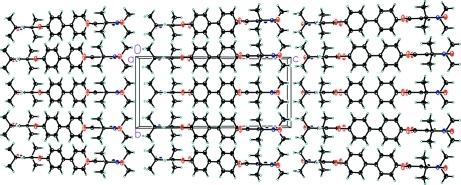

In the title compound, C(30)H(34)N(2)O(6), the complete molecule is generated by a crystallographic 2/m symmetry operation. The 1-oxyl-3-pyrroline-3-carboxyl-ate group lies on a mirror plane. The dihedral angle between the ring planes of the biphenyl fragment is constrained by symmetry to be zero, resulting in rather short intramolecular H⋯H contact distances of 2.02 Å. In the crystal, molecules are connected along the a-axis direction by very weak intermolecular methyl-phenyl C-H⋯π interactions. The C-H bond is not directed to the center of the benzene ring, but mainly to one C atom [C-H⋯C(x - 1, y, z): H⋯C = 2.91 Å and C-H⋯C = 143°].

摘要
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/140b/2977196/effcc6a6be27/e-65-o1784-fig1.jpg
