The Mg member of the isotypic series MTe6O13.

作者信息

Shirkhanlou Mahdi, Weil Matthias

机构信息

Institute for Chemical Technologies and Analytics, Division of Structural Chemistry, Vienna University of Technology, Getreidemarkt 9/164-SC, A-1060 Vienna, Austria.

出版信息

Acta Crystallogr Sect E Struct Rep Online. 2013 Mar 1;69(Pt 3):i18. doi: 10.1107/S1600536813003875. Epub 2013 Feb 13.

Abstract

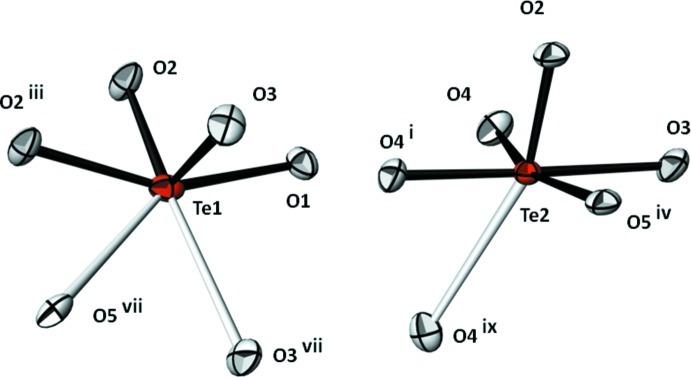

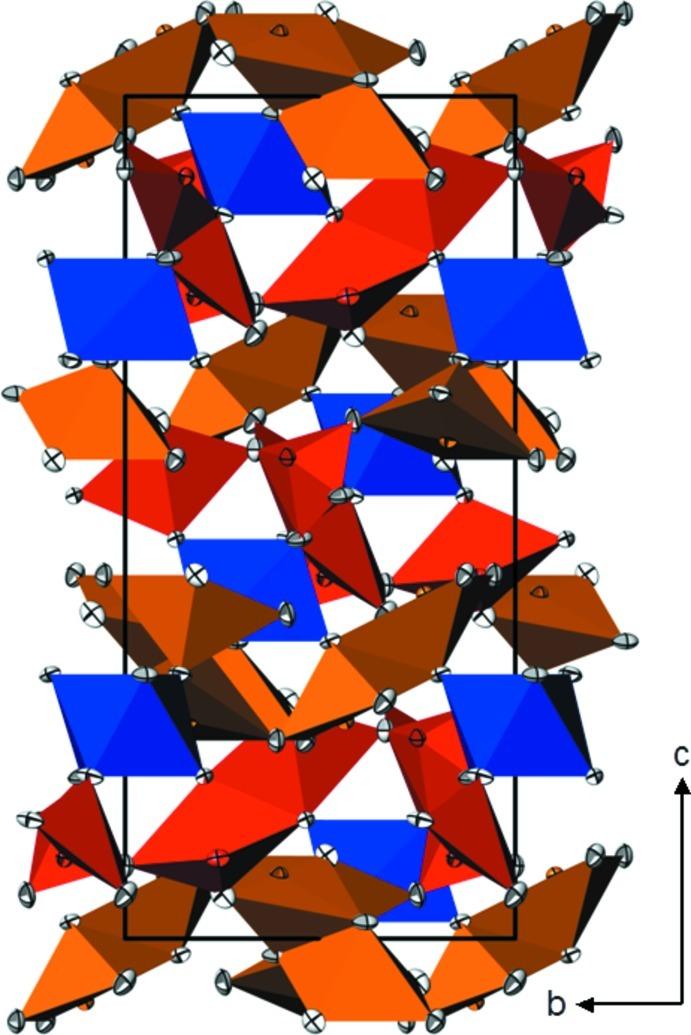

MgTe6O13, magnesium hexa-tellurate(IV), is isotypic with the structures of divalent first-row transition metal analogues MTe6O13 (M = Mn, Fe, Co, Ni and Zn). The asymmetric unit contains one Mg, two Te and five O atoms of which the Mg and one O atom lie on a threefold rotation axis. The structure is made up from slightly distorted [MgO6] octa-hedra (isolated from each other), distorted [TeO4] bis-phenoids and [TeO4 + 1] tetra-gonal pyramids sharing corners and edges. This arrangement leads to the formation of a dense three-dimensional structure.

摘要
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/83f6/3588438/64391998eb06/e-69-00i18-fig1.jpg
