枕下外侧乙状窦后入路中锁孔位置的确定

Determination of the keyhole position in a lateral suboccipital retrosigmoid approach.

作者信息

Teranishi Yu, Kohno Michihiro, Sora Shigeo, Sato Hiroaki

机构信息

Department of Neurosurgery and Stroke Center, Tokyo Metropolitan Police Hospital.

出版信息

Neurol Med Chir (Tokyo). 2014;54(4):261-6. doi: 10.2176/nmc.oa2013-0020. Epub 2013 Nov 8.

DOI:10.2176/nmc.oa2013-0020
PMID:24201103
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC4533474/
Abstract

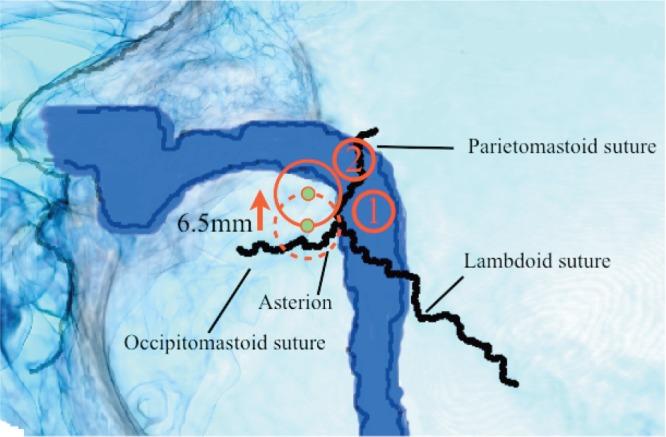

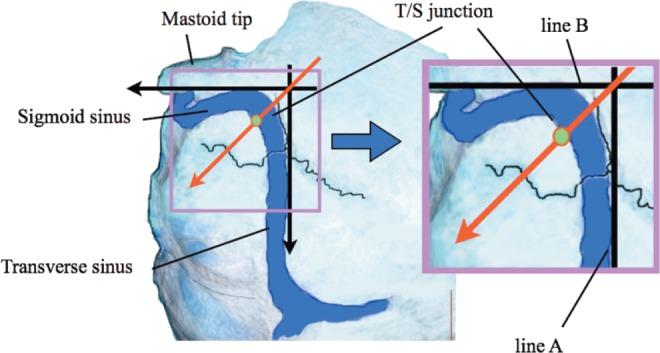

Appropriate placement of the keyhole at the transverse and sigmoid sinus (T/S) junction is important for performance of safe and accurate lateral suboccipital craniotomy with minimum bone loss. Here, we report a method for predicting the position of the T/S junction and investigate the relationship between the T/S junction and asterion. The subjects were 88 patients treated surgically via a lateral suboccipital approach. These cases included 78 acoustic neuromas, 4 meningiomas, 1 trigeminal schwannoma, 1 epidermoid cyst, 2 trigeminal neuralgias, and 1 hemifacial spasm. To expose the T/S junction, we usually place the keyhole lateral to asterion by a half diameter of the burr hole. The distance of the T/S junction from asterion was investigated using three-dimensional computed tomography (3DCT) images. We investigated the differences between the actual and predicted positions of the T/S junction based on skull landmarks, and we compared our method with other literature methods. The mean distances were 5.7 mm caudal and 6.6 mm lateral. The difference between the actual and predicted positions was significantly smaller in our approach compared to other methods. Placing the keyhole lateral to a provisional burr hole just caudal to asterion and lateral by half the diameter of the burr hole was useful for exposure of the T/S junction. The best approach is to use preoperative 3DCT, but this may be limited by equipment problems, emergency cases, or allergy to contrast medium. Determination of the appropriate keyhole position with reference to skull landmarks is a universally useful method.

摘要

在横窦和乙状窦(T/S)交界处正确放置锁孔对于进行安全、准确且骨损失最小的枕下外侧开颅手术至关重要。在此,我们报告一种预测T/S交界处位置的方法,并研究T/S交界处与星点之间的关系。研究对象为88例接受枕下外侧入路手术治疗的患者。这些病例包括78例听神经瘤、4例脑膜瘤、1例三叉神经鞘瘤、1例表皮样囊肿、2例三叉神经痛和1例半面痉挛。为暴露T/S交界处,我们通常将锁孔置于星点外侧,距离为骨孔直径的一半。使用三维计算机断层扫描(3DCT)图像研究T/S交界处与星点之间的距离。我们基于颅骨标志点研究T/S交界处实际位置与预测位置之间的差异,并将我们的方法与其他文献方法进行比较。平均距离为尾侧5.7毫米和外侧6.6毫米。与其他方法相比,我们的方法中实际位置与预测位置之间的差异明显更小。将锁孔置于星点尾侧临时骨孔外侧,距离为骨孔直径的一半,有助于暴露T/S交界处。最佳方法是使用术前3DCT,但这可能会受到设备问题、急诊病例或对造影剂过敏的限制。参照颅骨标志点确定合适的锁孔位置是一种普遍适用的方法。
