Experimental observation of ferrielectricity in multiferroic DyMn2O5.

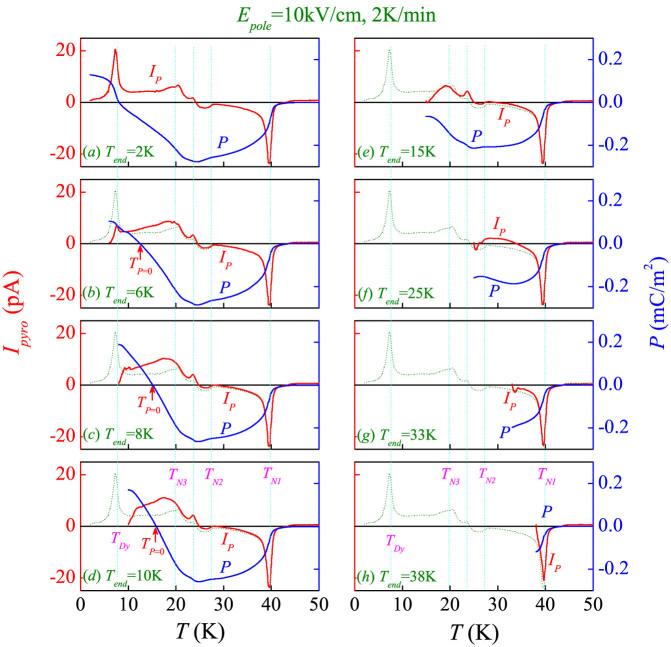

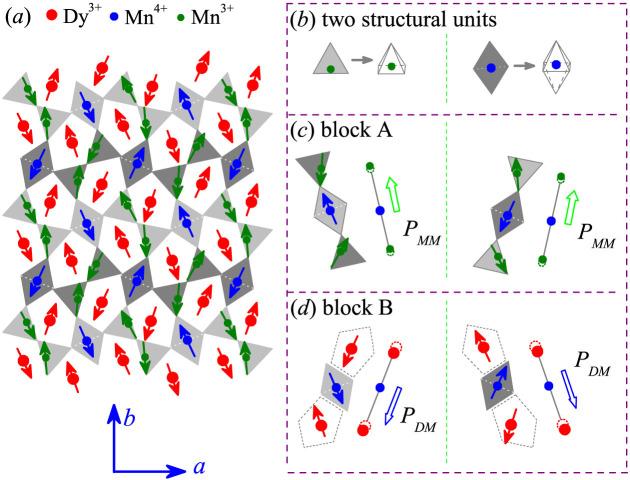

One of the major breakthroughs associated with multiferroicity in recent years is the discovery of ferroelectricity generated by specific magnetic structures in some magnetic insulating oxides such as rare-earth manganites RMnO3 and RMn2O5. An unresolved issue is the small electric polarization. Relatively large electric polarization and strong magnetoelectric coupling have been found in those manganites of double magnetic ions: magnetic rare-earth R ion and Mn ion, due to the strong R-Mn (4f-3d) interactions. DyMn2O5 is a representative example. We unveil in this work the ferrielectric nature of DyMn2O5, in which the two ferroelectric sublattices with opposite electric polarizations constitute the ferrielectric state. One sublattice has its polarization generated by the symmetric exchange striction from the Mn-Mn interactions, while the polarization of the other sublattice is attributed to the symmetric exchange striction from the Dy-Mn interactions. We present detailed measurements on the electric polarization as a function of temperature, magnetic field, and measuring paths. The present experiments may be helpful for clarifying the puzzling issues on the multiferroicity in DyMn2O5 and other RMn2O5 multiferroics.
